Lights

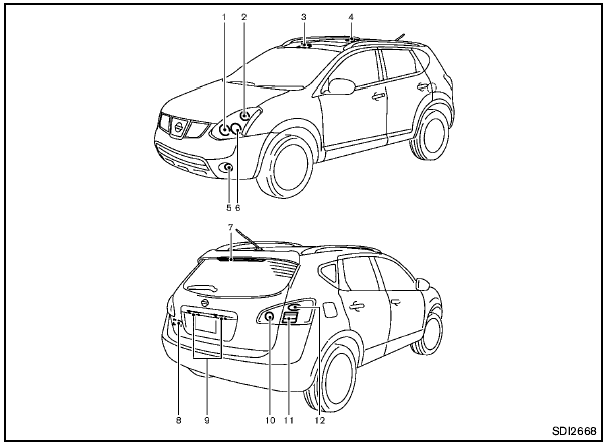

Headlights

1. Headlight (high-beam)

1. Headlight (high-beam)
2. Front turn signal/park/side marker light
3. Front map light
4. Ceiling light
5. Front fog light
6. Headlight (low-beam)
7. High-mounted stop light
8. Cargo light
9. License plate light
10. Back-up light
11. Rear combination light (stop/tail/side marker light)
12. Rear turn signal light

Fog may temporarily form inside the lens of the exterior lights in the rain or in a car wash. A temperature difference between the inside and the outside of the lens causes the fog. This is not a malfunction. If large drops of water collect inside the lens, contact a NISSAN dealer.

Replacing

Xenon headlight model:

HIGH VOLTAGE When xenon headlights

are on, they produce a high voltage. To prevent an electric shock, never attempt HIGH VOLTAGE When xenon headlights are on, they produce a high voltage. To prevent an electric shock, never attempt to modify or disassemble. Always have your xenon headlights replaced at a NISSAN dealer. For additional information, see “Headlight and turn signal switch” in the “2. Instruments and controls” section.

If replacement is required, see a NISSAN dealer.

Use the same number and wattage as originally installed:

Low beam:
Wattage: 35
Bulb no.: D2R
High beam:
Wattage: 60
Bulb no.: HB3

Halogen headlight model:

The headlight is a semi-sealed beam type which uses a replaceable headlight (halogen) bulb.

- Do not leave the bulb out of the headlight reflector for a long period of

- Do not leave the bulb out of the headlight reflector for a long period of time. Dust, moisture, smoke, etc.

entering the headlight body may affect bulb performance.

- High pressure halogen gas is sealed inside the halogen bulb. The bulb may break if the glass envelope is scratched or the bulb is dropped.

- Only touch the plastic base when handling the bulb. Never touch the glass envelope.

- Aiming is not necessary after replacing the bulb. When aiming adjustment is necessary, contact a NISSAN dealer.

Use the same number and wattage as originally installed:

Low beam:
Wattage: 55
Bulb no.: H11
High beam:
Wattage: 60
Bulb no.: HB3

Disconnect the battery negative cable before replacing bulbs.

Disconnect the battery negative cable before replacing bulbs.

A High-beam bulb
B Low-beam bulb

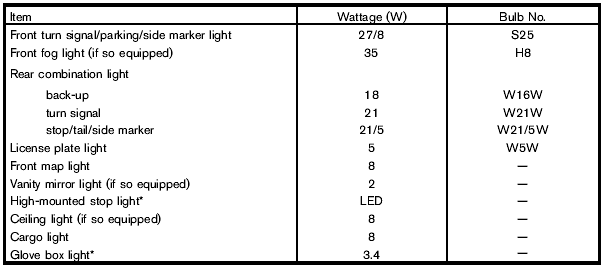

Exterior and interior lights

*: See a NISSAN dealer for replacement.

*: See a NISSAN dealer for replacement.

NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.

Replacement procedures

Replacement procedures

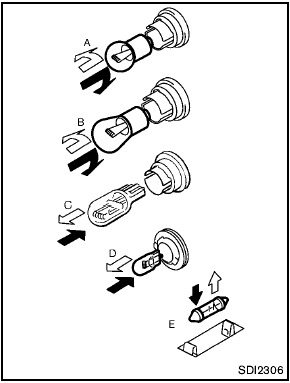

All other lights are either type A, B, C, D or E.

All other lights are either type A, B, C, D or E.

When replacing a bulb, first remove the lens and/or cover.

Front turn signal/park/side marker light (Halogen headlight model)
Front turn signal/park/side marker light (Halogen headlight model)

Xenon headlight model: See a NISSAN dealer for replacement.

Halogen headlight model: Remove the bulb as illustrated.

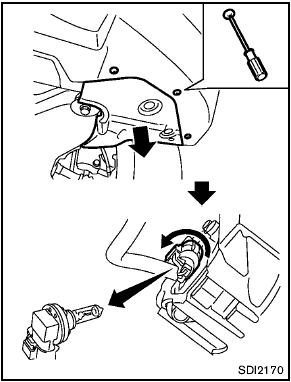

Front fog light
Front fog light

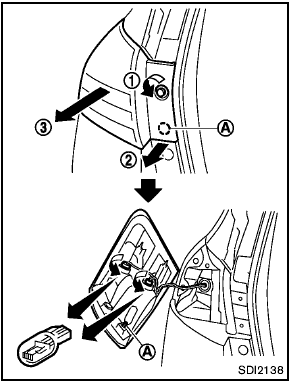

Rear combination light (stop/tail/side marker/turn)
Rear combination light (stop/tail/side marker/turn)

Open the lift gate to remove the rear combination light assembly.

A : Clip

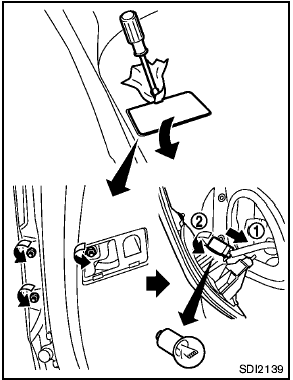

Back-up light
Back-up light

Open the lift gate to remove the back-up light assembly. One screw is located behind the cover on the lift gate.

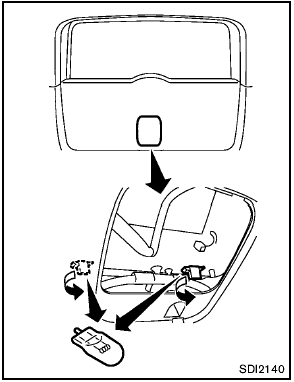

License plate light
License plate light

The license plate light bulb can be accessed by removing the cover on the inside of the lift gate.

Front map light
Front map light

Cargo light
Cargo light

Ceiling light
Ceiling light

Vanity mirror light
Vanity mirror light
