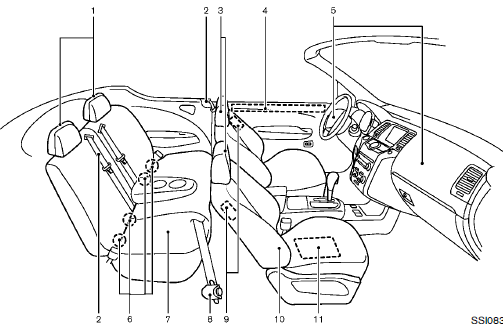

CrossCabriolet models
1. Dual pop-up roll bar system
2. Seat belts
3. Head restraints
— Front-seat Active Head Restraints
4. Door-mounted curtain side-impact and rollover
supplemental air bags
5. Supplemental front-impact air bags
6. LATCH (Lower Anchors for CHildren) system
7. Rear seats
— Child restraints
8. Seat belt pretensioner
9. Front seat-mounted side-impact supplemental
air bags
10. Front seats
11. Occupant classification sensor (pattern sensor)
— Advanced Air Bag System
