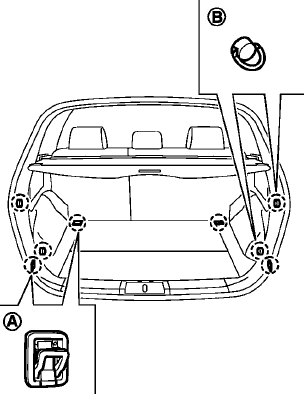

Luggage hooks (Hardtop models)

WARNING
• Always
make sure that the cargo is
properly secured. Use the suitable
ropes and hooks.
• Unsecured cargo
can become dangerous
in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than 22 lb (10 kg)A or 7 lb (3 kg)B to a single hook.
