Outside mirrors
WARNING
Objects viewed in the outside mirror on the passenger side are closer than they appear. Be careful when moving to the right. Using only this mirror could cause an accident. Use the inside mirror or glance over your shoulder to properly judge distances to other objects.
Adjusting outside mirrors

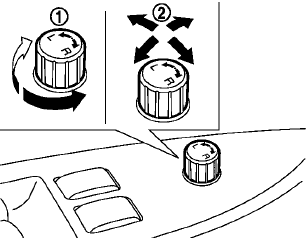

The outside mirror control switch is located on the armrest.
The outside mirror will operate only when the ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or left side mirror1 , then adjust using the control switch2 .
Defrosting outside mirrors (if so equipped)
The outside mirrors will be heated when the rear window defroster switch is operated.

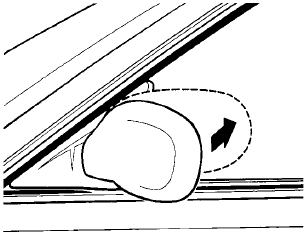

Foldable outside mirrors
Fold the outside mirror by pushing it toward the rear of the vehicle.
