Checking engine coolant level

Check the coolant level in the reservoir when

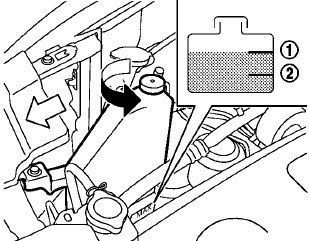

Check the coolant level in the reservoir when the engine is cold. If the coolant level is below the MIN level 2 , open the reservoir cap and add coolant up to the MAX level 1 . If the reservoir is empty, check the coolant level in the radiator when the engine is cold. If there is insufficient coolant in the radiator, fill the radiator with coolant up to the filler opening and also add it to the reservoir up to the MAX level 1 .

If the cooling system frequently requires coolant, have it checked by a NISSAN dealer.
