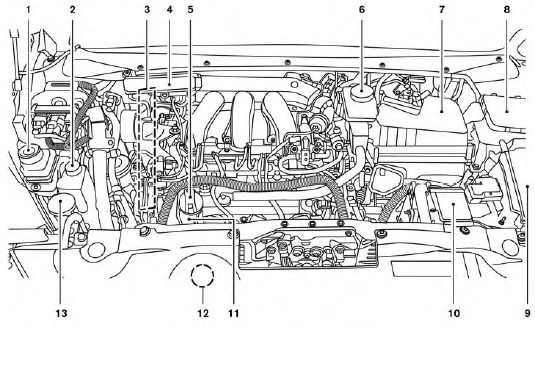

Engine compartment check locations

VQ35DE engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Drive belt location
4. Fuse box
5. Engine oil filler cap
6. Brake fluid reservoir
7. Air cleaner
8. Fuse box
9. Fusible links
10. Battery
11. Engine oil dipstick
12. Radiator cap
13. Windshield-washer fluid reservoir
See the page number indicated in parentheses for operating details.
