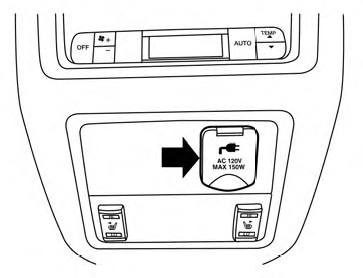

120v outlet (if so equipped)

2nd Row

2nd Row

CAUTION

● The outlet and plug may be hot during or immediately after use.
● Use power outlets with the engine running to avoid discharging the vehicle battery.
● Do not use double adaptors or more than one electrical accessory.
● Avoid using power outlets when the air conditioner, headlights or rear window defroster is on.
● Before inserting or disconnecting a plug, be sure the electrical accessory being used is turned OFF.
● Push the plug in as far as it will go. If good contact is not made, the plug may overheat or the internal temperature fuse may open.
● When not in use, be sure to close the cap. Do not allow water or any other liquid to contact the outlet.
