Cargo area storage bin

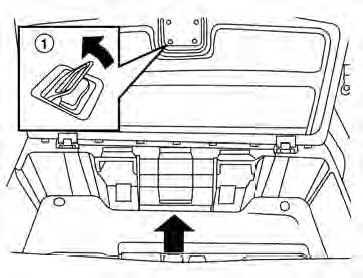

To access the floor storage area, push down 1 to raise the handle, then pull up on the handle to lift the luggage board.
