Panoramic sunshade (if so equipped)

The panoramic sunshade operates when the ignition

The panoramic sunshade operates when the ignition switch is in the ON position. The sunshade switch is located near the roof console. When opening or closing the sunshade the switch need not be held.

To open the sunshade:

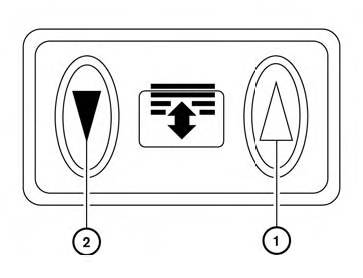

● To fully open the sunshade, push the switch 1 toward the open position.

To close the sunshade:

● To fully close the sunshade, push the switch 2 toward the close position.

WARNING

● To avoid personal injury, keep your hands, fingers and head away from the sunshade arm, the arm rail and sunshade inlet port.
● Do not allow children near the rear sunshade system. They could be injured.
● Do not place objects on or near the rear sunshade. This could cause improper operation or damage it.
● Do not pull or push the rear sunshade.

This could

CAUTION

● Do not place objects (such as newspapers, handkerchiefs, etc.) on the sunshade inlet port. Doing so may entangle these objects in the sunshade when it is extending or retracting, causing improper operation or damage to the sunshade.
● Do not push the sunshade arm with your hands, etc., as this may deform it.

Improper operation or damage to the sunshade may result.
● Do not put any object into the sunshade inlet port as this may result in improper operation or damage the sunshade.
● Do not hang any object on the arm rail as this may result in improper operation or damage the sunshade.
● Do not forcefully pull the sunshade. Doing so may elongate the sunshade. Improper operation or damage to the sunshade may result.

If the sunshade does not operate properly, perform the following procedure to initialize the sunshade operation system.

1. Switch the vehicle ignition to the ACCESSORY or RUN mode.
2. Press and hold the sunshade close switch.
3. Sunshade will begin moving towards the close position only while the switch is continually pressed. (this disables the obstacle detection).
4. Sunshade will stop for about 4 seconds.
5. Sunshade drive cable will travel in the open direction for .394 in. (10 mm) than reverse direction and stop at the normal close position.
6. Release the sunshade close switch. Initialization procedure is complete.

If the moonroof does not operate properly after performing the procedure above, have your vehicle checked by a NISSAN dealer.

Auto-reverse function (when closing the sunshade)

The auto-reverse function can be activated when the sunshade is closed by automatic operation when the ignition switch is placed in the ON position or for a period of time after the ignition switch is placed in the OFF position.

Depending on the environment or driving conditions, the auto-reverse function may be activated if an impact or load similar to something being caught in the sunshade occurs.

WARNING

There are some small distances immediately before the closed position which cannot be detected. Make sure that all of the passengers have their hands, etc., inside the vehicle before closing the sunshade.
