Engine compartment

Engine compartment
Engine compartment

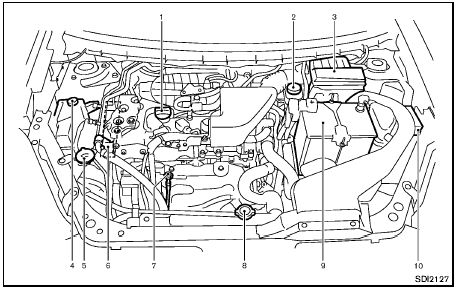

QR25DE engine

1. Engine oil filler cap
2. Brake fluid reservoir
3. Air cleaner
4. Engine coolant reservoir
5. Window washer fluid reservoir
6. Engine drive belt location
7. Engine oil dipstick
8. Radiator filler cap
— Vehicle overheat
9. Battery
— Jump starting
10. Fuse/fusible link holder
