Remote keyless entry system

WARNING

The Intelligent Key transmits radio waves when the buttons are pushed.

The FAA advises that radio waves may affect aircraft navigation and communication systems. Do not operate the Intelligent Key while on an airplane.

Make sure the buttons are not operated unintentionally when the unit is stored for a flight.

It is possible to lock/unlock all doors and the lift gate/trunk lid, activate the panic alarm and open the windows and lift gate/trunk lid (if so equipped) by pushing the buttons on the Intelligent Key from outside the vehicle.

Before locking the doors, make sure the Intelligent Key is not left in the vehicle.

The LOCK/UNLOCK button on the Intelligent Key can operate at a distance of approximately 33 ft (10 m) from the vehicle. (The effective distance depends upon the conditions around the vehicle.) As many as 4 Intelligent Keys can be used with one vehicle. For information concerning the purchase and use of additional Intelligent Keys, contact a NISSAN dealer.

The lock and unlock buttons will not operate when:

the distance between the Intelligent Key and the vehicle is over 33 ft (10 m).
the Intelligent Key battery is discharged.

After locking with the remote keyless entry function, pull the door handle to make sure the doors are securely locked.

The LOCK/UNLOCK operating range varies depending on the environment. To securely operate the lock and unlock buttons, approach the vehicle to about 3 ft (1 m) from the door.

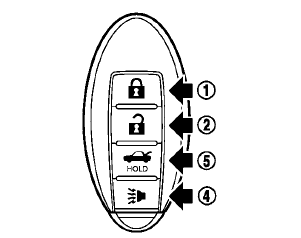

Type A

Type A

Type B

Type B

Type C

Type C

1 LOCK button2 UNLOCK button
2 UNLOCK button3 Power lift gate button
3 Power lift gate button  (if so equipped) (if so equipped)
4 PANIC button5 TRUNK button  (CrossCabriolet
5 TRUNK button models) (CrossCabriolet models)

HOW TO USE REMOTE KEYLESS ENTRY SYSTEM

When you lock or unlock the doors or the lift gate/trunk lid, the hazard indicator will flash and the horn (or the outside chime) will sound as a confirmation. For details, see “Setting hazard indicator and horn mode” later in this section.

Locking doors

1. Move the shift lever to the P (Park) position and push the ignition switch to the OFF position. Make sure you carry the Intelligent Key with you.*
2. Close all the doors and lift gate.
3. Push the LOCK 4. All the doors and the lift gate will lock. button 1 .
4. All the doors and the lift gate will lock.
5. The hazard indicator flashes twice and the horn chirps once.

*: Doors will lock while the ignition switch is in the ACC or ON position.

Unlocking doors

1. Push the UNLOCK once. button2 once.
2. The hazard indicator flashes once. The driver’s door will unlock.
3. Push the UNLOCK within 1 minute. button 2 again within 1 minute.
4. The hazard indicator flashes once again. All the doors and the lift gate will unlock.

All doors will be locked automatically unless one of the following operations is performed within 1 minute after pushing the UNLOCK button button 2 while the doors are locked. If during this 1- minute time period, the UNLOCK button2 button2 is pushed, all doors will be locked automatically after another 1 minute.

Opening any door (including the lift gate) or trunk
Pushing the ignition switch

Opening windows

The UNLOCK also button 2 operation also allows you to open the window that is equipped with the automatic open/close function. (See “Power windows” in the “2. Instruments and controls” section).

To open the windows, push the door UNLOCK after the button2 for about 3 seconds after the door is unlocked.

To stop opening, release the UNLOCK button2 . button2 .

Windows cannot be closed using the button on the Intelligent Key.

If the window open operation is stopped in midoperation while pushing the UNLOCK button 2 , release and push the UNLOCK button 2 , release and push the UNLOCK opens button 2 again until the window opens completely.

The door windows can be opened or closed by turning the mechanical key in a door lock. (See “Doors” earlier in this section.)

Opening/closing lift gate (if so equipped)

1. Push the power lift gate 3button 3 for more than 1 second.
2. The lift gate will automatically open.

The hazard indicator flashes 4 times and the outside chime sounds for approximately 3 seconds.

To close the lift gate, push the power lift gate button3 .

The lift gate will automatically close.

If the power lift gate pushed button3 is pushed while the lift gate is being opened or closed, the lift gate will reverse.

The power lift gate be button3 cannot be operated when the ignition switch is in the ON position.

Using panic alarm

If you are near your vehicle and feel threatened, you can activate the alarm according to the following procedure to call attention.

1. Push the PANIC for more button 4 for more than 1 second.
2. The theft warning alarm will sound and the headlights will flash for 25 seconds.
3. The panic alarm stops under either of the following conditions.

It has run for 25 seconds, or
Any of the buttons is pushed. (Note: the PANIC pushed for more than 1 second.) button 4 should be pushed for more than 1 second.)

Opening trunk lid (CrossCabriolet models)

1. Push the TRUNK the button 5 on the Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.

Setting hazard indicator and horn mode

This vehicle is set in hazard indicator and horn mode when you first receive the vehicle.

In hazard indicator and horn mode, when the LOCK hazard button 1 is pushed, the hazard indicator flashes twice and the horn chirps once.

When the UNLOCK the hazard indicator flashes once. button2 is pushed, the hazard indicator flashes once.

If horns are not necessary, the system can be switched to the hazard indicator mode.

In hazard indicator mode, when the LOCK button 1 is pushed, the hazard indicator button 1 is pushed, the hazard indicator flashes twice. When the UNLOCK button button 2 is pushed, neither the hazard indicator nor the horn operates.

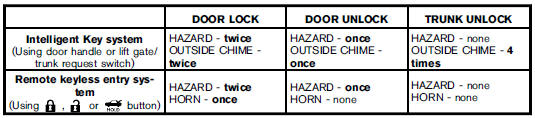

Hazard indicator and horn mode:

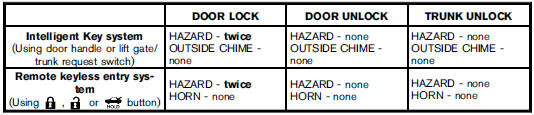

Hazard indicator mode:

Hazard indicator mode:

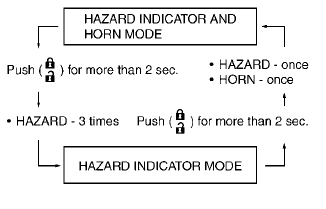

Switching procedure:

Switching procedure:

Push the LOCK 2 1 and UNLOCK buttons simultaneously for more than 2 seconds 2 buttons simultaneously for more than 2 seconds to switch the mode from one to the other.

When pushing the buttons to set the hazard indicator mode, the hazard indicator flashes 3 times.

When pushing the buttons to set the hazard indicator and horn mode, the hazard indicator flashes once and the horn chirps once.
