Tachometer

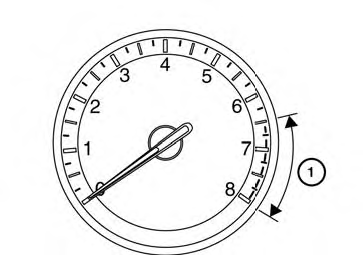

The tachometer indicates engine speed in revolutions per minute (rpm). Do not rev engine into the red zone 1 .
CAUTION
When engine speed approaches the red zone, reduce engine speed. Operating the engine in the red zone may cause serious engine damage.
