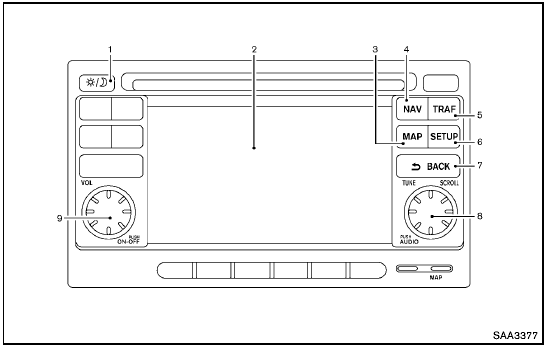

Control panel buttons — color screen with navigation system (if so equipped)

Control panel buttons — color screen with navigation system (if so equipped)
Control panel buttons — color screen with navigation system (if so equipped)

1. 2. Display screen (brightness control) button
2. Display screen
3. MAP button*
4. NAV button*
5. TRAF button*
6. SETUP button
7. 8. TUNE/SCROLL knob BACK button
8. TUNE/SCROLL knob
9. Power button/Volume control knob

*For Navigation system control buttons, refer to the separate Navigation System Owner’s Manual.

When you use this system, make sure the engine is running.

If you use the system with the engine not running (ignition ON or ACC) for a long time, it will discharge the battery, and the engine will not start.

Reference symbols:

“Example” — Words marked in quotes refer to a key shown only on the display. These keys can be selected by touching the screen.

How to use touch screen

- The glass screen on the liquid crystal display may break if it is hit with

- The glass screen on the liquid crystal display may break if it is hit with a hard or sharp object. If the glass breaks, do not touch the liquid crystalline material, which contains a small amount of mercury. In case of contact with skin, wash immediately with soap and water.

- To clean the display, use a soft, dry cloth. If additional cleaning is necessary, use a small amount of neutral detergent with a soft cloth.

Never use a rough cloth, alcohol, benzine, thinner or any kind of solvent or paper towel with a chemical cleaning agent. They willscratch or deteriorate the panel.

- Do not splash any liquid such as water or car fragrance on the display.

Contact with liquid will cause the system to malfunction.

To ensure safe driving, some functions cannot be operated while driving.

The on-screen functions that are not available while driving will be “grayed out” or muted.

Park the vehicle in a safe location and then operate the navigation system.

- ALWAYS give your full attention to driving.

- ALWAYS give your full attention to driving.

- Avoid using vehicle features that could distract you. If distracted, you could lose control of your vehicle and cause an accident.

Touch screen operation

Touch screen operation

Selecting the item:

Touch an item to select. For example, to select the “Audio” key, touch the “Audio” key 1 on the screen.

Adjusting the item:

Adjusting the item:

For screens where an item can be adjusted incrementally, such as when adjusting the bass and treble for the audio system, touch the “+” key 1 or the “−” key 2 to adjust the settings of an item.

When there are more items than can be displayed on one screen, touch the up arrow 3 to scroll up the page or touch the down arrow 4 to scroll down the page.

Other items are adjusted by selecting one of a set number of conditions. For

Other items are adjusted by selecting one of a set number of conditions. For example, the Display Mode can be set to “Automatic”, “Day” or “Night”. To adjust this type of item, touch the item 1 . The item will cycle through the available settings and the red indicator lights to the left of the setting condition 2 will come on or turn off accordingly.

Inputting characters:

Inputting characters:

Touch the letter key 1 .

There are some options available when inputting characters.

- 123/ABC:

Changes the available character set to numbers.

- Space:

Inserts a space.

- Delete:

Deletes the last inputted character with one touch. Touch and hold the “Delete” key to delete all of the characters.

- OK:

Completes the character input.

Touch screen maintenance

If you clean the display screen, use a dry, soft cloth. If additional cleaning is necessary, use a small amount of neutral detergent with a soft cloth. Never spray the screen with water or detergent. Dampen the cloth first and then wipe the screen.

How to use the back button

Push the the previous screen. BACK button to return to the previous screen.

How to use brightness control and display ON/OFF button

To change the display brightness, push the change the display to the day or the night display. button. Pushing the button again will change the display to the day or the night display.

If no operation is performed within 5 seconds, the display will return to the previous display.

Push and hold the than two seconds to turn the display off. Push the button again to turn the display button for more than two seconds to turn the display off. Push the button again to turn the display on.

How to use the setup button

When the SETUP button is pushed, the Setup screen will appear on the display.

When the SETUP button is pushed, the Setup screen will appear on the display. You can select and/or adjust several functions, features and modes that are available for your vehicle.

Audio setup

Audio setup

Push the AUDIO button to adjust the following items to the desired setting:

Bass, Treble, Balance and Fade:

Controls the sound of the audio system. Balance adjusts the sound between the left and right speakers. Fade adjusts the sound between the front and rear speakers.

Speed Volume:

Speed Volume:

Controls the level to which the volume is adjusted as the vehicle’s driving speed changes.

Choose a setting between 1 and 5 or choose 0 to disable the feature entirely.

AUX Level:

Controls the volume level of incoming sound when an auxiliary device is connected to the system. Available options are Quiet, Medium and Loud.

Navigation setup

Refer to the separate Navigation System Owner’s Manual for information regarding this item.

XM setup

For XM setup, refer to “Audio system” later in this section.

System setup

System setup

Select the “System” key to select and/or adjust various functions of the system. A screen with additional options will appear.

Display:

Display:

Select the “Display” key to adjust the appearance of the display. The following settings can be adjusted:

- Brightness:

The brightness of the display can be set to Very Bright, Bright, Default, Dark or Very Dark. Touch the “Brightness” key to cycle through the options.

- Display Mode:

The display can be adjusted to fit the level of lighting in the vehicle. Touch the “Display Mode” key to cycle through the options. “Day” and “Night” modes are suited for the respective times of day, while “Automatic” controls the display automatically.

- Scroll Direction:

The direction that menus scroll can be adjusted.

Choose either “up” or “down”.

Clock:

Clock:

Select the “Clock” key to adjust the time and the appearance of the clock on the display. The following settings can be adjusted:

- Time Format:

The clock can be set to 12 hours or 24 hours.

- Use GPS Clock:

When this setting is activated, the clock is set and continually updated via the GPS used by the Navigation System.

- Set Clock Manually:

When this setting is activated, the clock can be set manually. Touch the “+” or “−” key to adjust the hours and minutes up or down.

- Daylight Savings Time:

When this setting is activated, daylight savings time is on. Touch the “Daylight Savings Time” key to toggle the setting on or off.

- Time Zone:

Choose the applicable time zone from the list.

Language:

Language:

Select the “Language” key to adjust the language used by the system. The language can be set to English, Franc¸ ais or Espan˜ ol.

Touch click:

Select the “Touch Click” key to toggle the touch click feature on or off. When activated, a click sound will be heard every time a key on the screen is touched.

Beep tones:

Select the “Beep Tones” key to toggle the beep tones feature on or off. When activated, a beep sound will be heard every time a key on the screen is touched.

Reset all settings/memory:

Select the “Reset All Settings/Memory” key to return all settings to default and to clear the memory.

Traffic setup

Refer to the separate Navigation System Owner’s Manual for information regarding this item.
