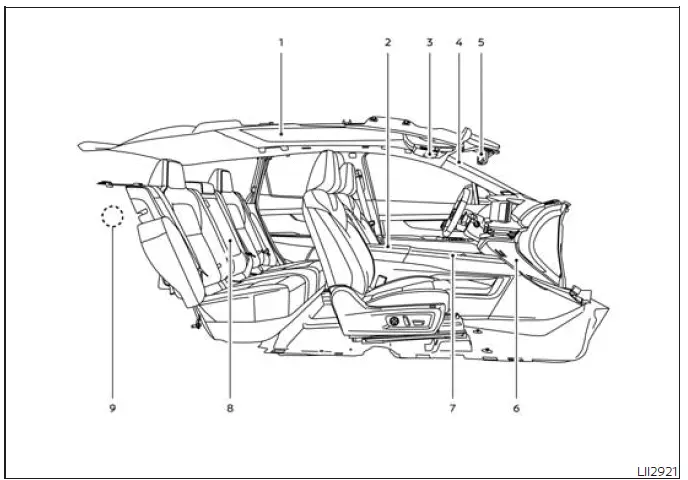

Passenger compartment

1. Power moonroof, if so equipped, located above the seating area and operated through the interior controls.
2. Console box, providing covered storage between the front seating positions.
3. Map lights, positioned overhead for focused interior illumination.
4. Sun visors, used by the driver and front passenger to reduce glare through the windshield or side glass.
5. Rearview mirror
   Front passenger air bag status light, combining rear visibility with important passenger air bag status information.
6. Glove box, located on the passenger side of the instrument panel for enclosed storage.
7. Cup holders, placed within the cabin for convenient beverage storage.
8. Center armrest, positioned for passenger comfort and practical use between seating areas.
9. Luggage hooks
   Emergency tire puncture repair kit, if so equipped, located in the cargo area to help secure light items and provide access to temporary tire repair equipment.

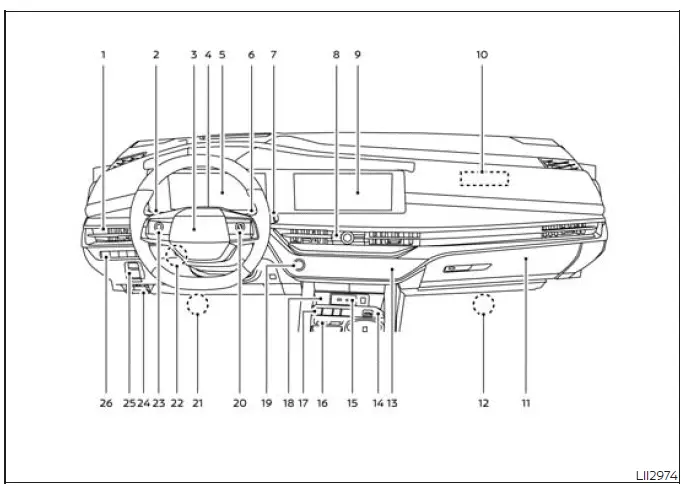

Instrument panel

1. Vent, used to direct airflow from the heating and air conditioning system into the cabin.
2. Headlight/turn signal switch, positioned for driver access to exterior lighting and turn signal operation.
3. Supplemental air bag
   Horn, located at the steering wheel area as part of the driver control layout.
4. Driver monitor camera, if so equipped, positioned to support applicable driver monitoring features.
5. Meters and gauges
   Warning and indicator lights
   Vehicle information display, grouped in the driver's forward view to provide operating status, alerts, and vehicle information.
6. Paddle shifter, allowing manual-style shift input where the feature is provided.
7. Wiper and washer switch
   Rear window wiper and washer switch, giving the driver control over front and rear glass cleaning functions.
8. Hazard warning flasher switch
   Audio system/Center display controls*, positioned in the center area for quick access to emergency flashing lights and infotainment-related controls.
9. Center display*
   Navigation display, if so equipped*, serving as the main visual interface for supported audio, vehicle, and navigation functions.
10. Front passenger supplemental air bag, integrated into the passenger-side instrument panel area.
11. Glove box, the enclosed passenger-side storage compartment.
12. Front passenger supplemental knee air bag, located in the lower passenger-side instrument panel area.
13. Heater and air conditioning controls, used to adjust cabin temperature, airflow direction, fan speed, and related climate functions.
14. Drive Mode Selector, used to choose available driving modes for the Nissan Murano depending on vehicle equipment and conditions.
15. USB ports*, provided for supported device connection and charging functions.
16. Idling Stop OFF switch, used to turn off the Idling Stop function when desired.
17. Shift switches, positioned in the center control area for gear selection operation.
18. Magnetic Wireless charger, intended for compatible devices that support wireless charging.
19. Push-button ignition switch, used to start or stop the vehicle when the key system conditions are met.
20. Bluetooth Hands-Free Phone System/ Audio control switches*
    Control panel and vehicle information display switches, allowing the driver to manage phone, audio, and display functions from the steering wheel area.
21. Driver supplemental knee air bag, located in the lower driver-side instrument panel area.
22. Tilt and telescopic steering wheel control, used to adjust steering wheel position for driver comfort and control.
23. ProPILOT Assist switches
    Volume control switches*, grouped on the steering wheel for convenient access to driver assistance and audio volume functions.
24. Hood release, located in the lower driver-side area for opening the engine hood.
25. Electronic parking brake
    Automatic brake hold switch, used to engage the parking brake and control brake hold operation.
26. Steering Assist switch
    Head Up Display (HUD) switch, if so equipped
    Heated steering wheel switch, if so equipped
    Liftgate instrument panel switch, bringing several comfort, display, steering assistance, and liftgate controls into the driver's side control area.

*: Refer to the separate NissanConnect Owner's Manual for detailed operation of the audio, center display, navigation, USB, Bluetooth, and related connected features used in the Nissan Murano.
