Exterior and interior lights

*: See a NISSAN dealer for replacement.

*: See a NISSAN dealer for replacement.
**: Xenon headlight model

NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.

Replacement procedures

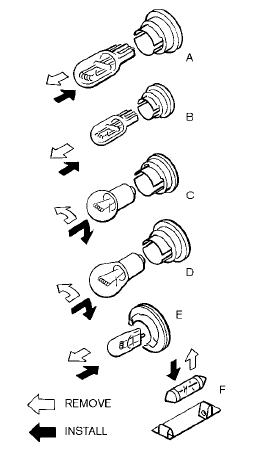

All other lights are either type A, B, C, D, E or F.

When replacing a bulb, first remove the lens and/or cover.

Side marker light (Halogen headlight model)

Side marker light (Halogen headlight model)

1. Remove the rubber cover. (See “Headlights” earlier in this section.)
2. Remove the bulb as illustrated.

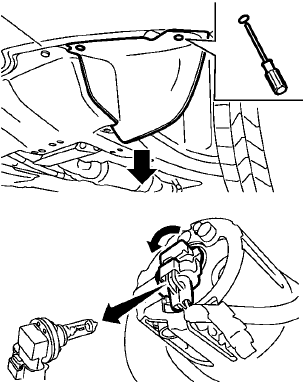

Front fog light (if so equipped)

Front fog light (if so equipped)

Front map light

Front map light

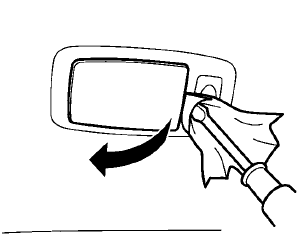

Rear personal light (if so equipped)

Rear personal light (if so equipped)

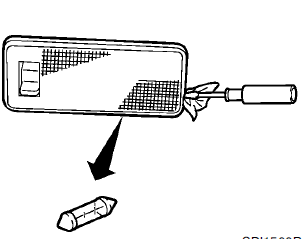

Cargo light (Hardtop models)

Cargo light (Hardtop models)

Trunk light (CrossCabriolet models)

Trunk light (CrossCabriolet models)

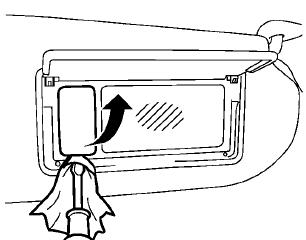

Vanity mirror light (if so equipped)

Vanity mirror light (if so equipped)
