Exterior front

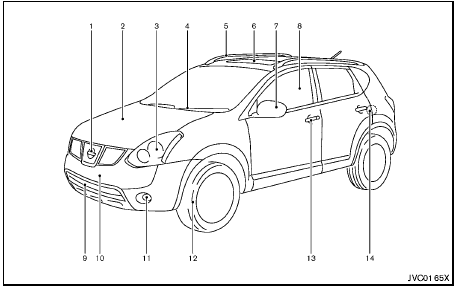

Exterior front
1. Front view camera*
2. Hood
3. Headlight and turn signal lights
— Switch operation
— Bulb replacement
4. Windshield wiper and washer
— Switch operation
— Blade replacement
— Window washer fluid
5. Roof rack (rail)*
6. Moonroof*
7. Outside mirrors
— Side view camera*
8. Power windows
9. Recovery hook
10. License plate installation
11. Fog lights*
— Switch operation
— Bulb replacement
12. Tires
— Wheel and tires
— Flat tire
— Tire Pressure Monitoring System (TPMS)
13. Doors
— Keys
— Door locks
— Intelligent Key system*
— Remote keyless entry system*
— Security system
14. Child safety rear door lock
*: if so equipped
