Exterior and interior lights

* See a NISSAN dealer for replacement.

* See a NISSAN dealer for replacement.

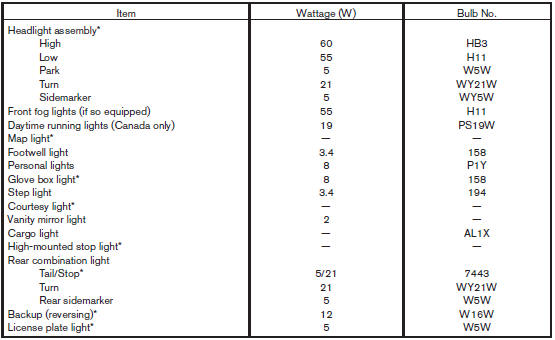

Always check with the Parts Department at a NISSAN dealer for the latest parts information.

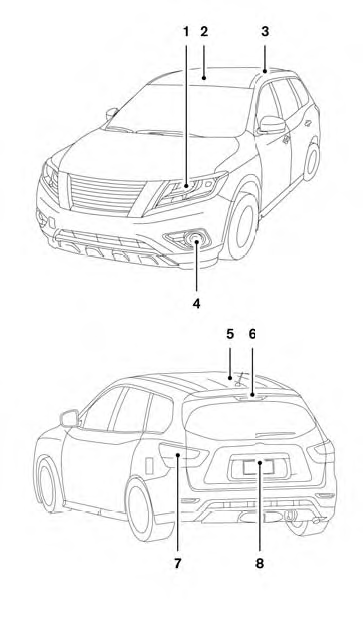

1. Headlight assembly

1. Headlight assembly
2 Map light
3 Personal light
4. Fog light (if so equipped)/ Daytime running light (Canada only) (if so equipped)
5. Cargo light
6. Courtesy light
7. Rear combination light
8. License plate light

Replacement procedures

Replacement procedures

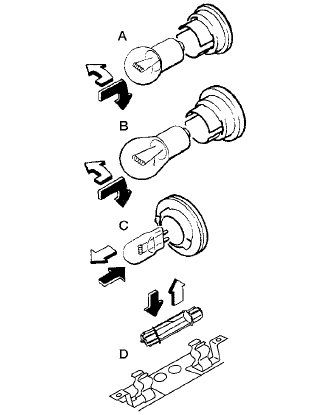

All other lights are either type A, B, C or D. When replacing a bulb, first remove the lens, lamp and/or cover.

Indicates bulb installation Indicates bulb removal
Indicates bulb installation

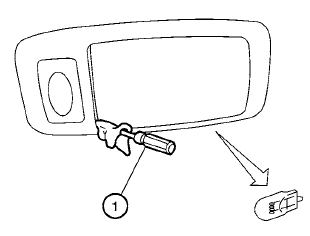

Personal lights

Personal lights

Use a cloth 1 to protect the housing.

Vanity mirror

Vanity mirror

Use a cloth 1 to protect the housing.

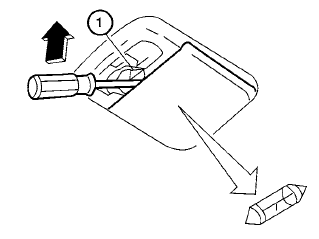

Cargo light

Cargo light

Use a cloth 1 to protect the housing.
