Front seats

Manual seat adjustment

Manual seat adjustment

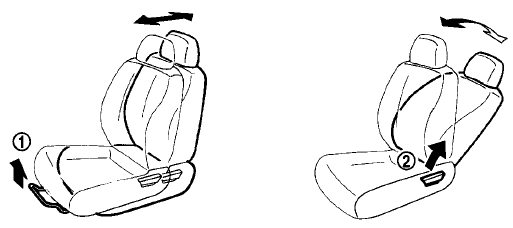

Forward and backward:

Pull the lever1 up and hold it while you slide the seat forward or backward to the desired position. Release the lever to lock the seat in position.

Reclining:

To recline the seatback, pull the lever2 up and lean back. To bring the seatback forward, pull the lever up and lean your body forward. Release the lever to lock the seatback in position.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “Precautions on seat belt usage” later in this section.) Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the transmission in the P (Park) position.

Sliding front passenger seat (CrossCabriolet

Sliding front passenger seat (CrossCabriolet models):

To slide the front passenger seat from the front most position to the rear most position, push the bottom half of the seatbackA or the front seat cushion B . If you push the top half of the seatback C , it will lock the seat in the front most position.

Seat lifter (if so equipped):

Seat lifter (if so equipped):

Pull up or push down the adjusting lever to adjust the seat height until the desired position is achieved.

Lumbar support (if so equipped):

Lumbar support (if so equipped):

The lumbar support feature provides lower back support to the driver.

Move the lever 1 up or down to adjust the seatback lumbar area.

Power seat adjustment

Operating tips:

The power seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.
Do not operate the power seat switch for a long period of time when the engine is off.

This will discharge the battery.

See “Automatic drive positioner” in the “3. Predriving checks and adjustments” section for the seat position memory function (if so equipped).

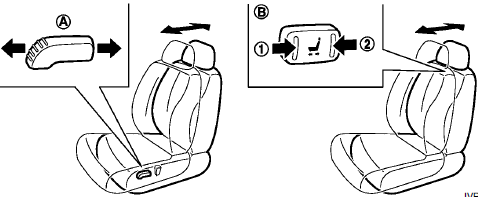

Forward and backward:

Forward and backward:

Moving the switchA forward or backward will slide the seat forward or backward to the desired position.

Pushing the front 1 or back 2 end of the slide switchB will slide the driver seat forward or backward to the desired position (Cross- Cabriolet models driver’s seat only).

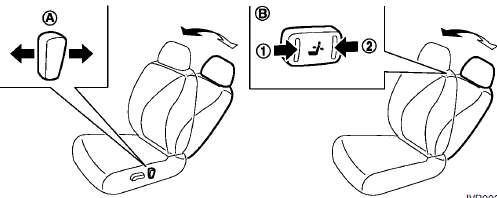

Reclining:

Reclining:

Move the recline switchA backward until the desired angle is obtained. To bring the seatback forward again, move the switchA forward.

Push and hold the back2 end of the reclining switch B until the desired angle is obtained.

To bring the seatback forward again, push and hold the front 1 end of the switch (Cross- Cabriolet models driver’s seat only).

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit. (See “Precautions on seat belt usage” later in this section.) Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park) position.

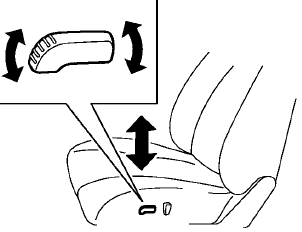

Seat lifter (if so equipped):

Seat lifter (if so equipped):

Push the front or rear end of the switch up or down to adjust the angle of the front portion or height of the seat.

Lumbar support (if so equipped):

Lumbar support (if so equipped):

The lumbar support feature provides lower back support to the driver.

Push the front1 or back2 end of the switch to adjust the seatback lumbar area.

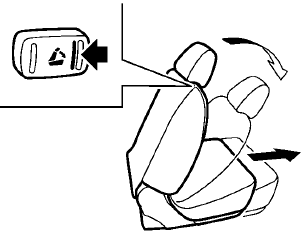

Front passenger’s seatback switch

Front passenger’s seatback switch

Remote walk-in switch

Remote walk-in switch

Walk-in function (front passenger seat, CrossCabriolet models):

CAUTION

When operating the walk-in function, be sure not to contact any moving parts to avoid possible injuries and/or damages.
When operating the walk-in function, be sure that the front passenger seat is not occupied by a passenger and/or any objects to avoid possible injuries and/or damages.
After operating the walk-in function, be sure to return the seat to the rearmost position and then tilt up the seatback until it latches.

This feature makes it easier to get in and out of the rear seat. Use the following procedure when getting in and out of the rear seat on the passenger’s side. If the sun visor is used, close it to the original position before operating the walk-in feature.

1. Push the front passenger’s seatback switch to fold down the seatback and unlock the seat position.

Alternatively, you can push the remote walkin switch located on the instrument panel to fold down the front passenger’s seatback and unlock the seat position.

2. Slide the seat forward to the foremost position manually.
3. Get in or out the vehicle.
4. Return the front passenger seat to the rearmost position. To slide the front passenger seat, see “Manual seat adjustment” earlier in this section.

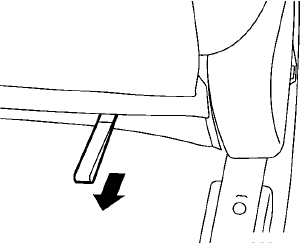

Driver’s seatback release (CrossCabriolet

Driver’s seatback release (CrossCabriolet models)

To exit the rear seat from the driver’s side, pull the strap behind the driver’s seat to release the driver’s seatback. The driver’s seatback will tilt forward so that you can exit the vehicle.

NOTE:

Pulling the strap behind the driver’s seat does not slide the driver’s seat forward.

You cannot slide the driver’s seat manually.

WARNING

Before using the driver’s seatback release, be sure that the driver’s seat is not occupied by a driver and/or any objects to avoid possible injuries and/ or damage.
