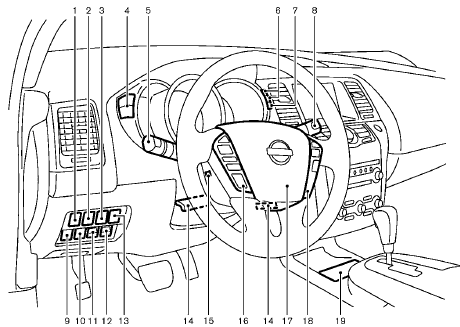

Cockpit

1. Heated steering wheel switch

1. Heated steering wheel switch
2. Power lift gate switch (Hardtop models) or trunk lid release switch (CrossCabriolet models)
3. Warning systems switch
- Lane Departure Warning (LDW) system
- Blind Spot Warning (BSW) system
4. Instrument brightness control switch
5. Headlight, fog light and turn signal switch
— Headlight
— Turn signal light
— Fog light
6. Trip computer switch
7. TRIP/RESET switch
8. Wiper and washer switch
9. Vehicle Dynamic Control (VDC) off switch
10. Power lift gate main switch (Hardtop models) or All-Wheel Drive (AWD) LOCK switch (Cross- Cabriolet models)
11. Power rear seatback switch (Hardtop models)
12. Power rear seatback switch (Hardtop models) or Remote walk-in switch (CrossCabriolet models)
13. Fuel-filler door opener switch
14. Manual tilting/telescopic steering wheel lever
15. Electric tilting/telescopic steering wheel switch
16. Steering-wheel-mounted controls (left side)
— Audio control
— Bluetooth® Hands-Free Phone System control (models with navigation system)
— Bluetooth® Hands-Free Phone System control (models without navigation system)
17. Steering wheel
— Horn
— Driver supplemental air bag
— Power steering system
18. Steering-wheel-mounted controls (right side)
— Cruise control switches
19. Center-console mounted controls
— Heated seat switches
— All-Wheel Drive (AWD) LOCK switch (Hardtop models)
— Soft top operating switch (CrossCabriolet models)

*: if so equipped
