Luggage cover (CrossCabriolet models)
A luggage cover is used to separate the trunk and the top storage area.

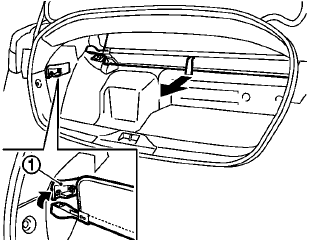

To use the luggage cover, pull it out and hang both sides on the hooks1 .
To stow the luggage cover, remove it from the hooks and hold it until it is retracted.
The luggage cover must be pulled out and hung on hooks 1 for the soft top to oparate. (See “Soft top (CrossCabriolet models)” in the “3.
Pre-driving checks and adjustments” section.)
WARNING
• Do not
place anything over the
luggage cover during soft top operation.
• Do not
place or leave objects under
the cover that may push the cover
up.
• Do not
place items on sides that
intrude into luggage cover area.
