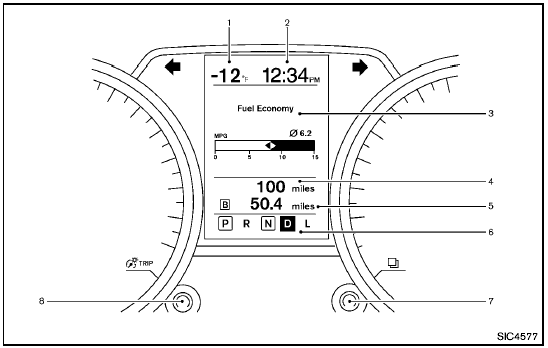

Vehicle information display

1. Outside temperature

1. Outside temperature
2. Clock
3. Operation indicators and warnings
— Trip computer
— Cruise control
— Settings menu
— Intelligent Key operation*
4. Odometer
5. Twin trip odometer
6. Continuously Variable Transmission (CVT) position indicator
7. switch (settings control and trip computer control)
8. switch (twin trip odometer control and brightness control)

*: if so equipped

Outside air temperature

The outside air temperature is displayed in 8F or 8C in the range of −58 to 1408F (−50 to 608C).

The outside air temperature mode includes low temperature warning features.

- When the ignition switch is placed in the ON position, — If the outside temperature is below 258F (- 4 8C), the outside temperature display flashes for 20 seconds, then stays on steady.

— If the outside temperature is between 27 and 378F(−3 and 38C), the outside temperature display flashes continuously.

- With the ignition switch in the ON position, or while driving, — If the outside temperature drops below 378F(38C), the outside temperature display flashes continuously. In addition, the low outside temperature warning indicator appears for 5 seconds, then turns off.

— If the outside temperature drops below 258F(- 4 8C), the outside temperature display stays on steady. The low outside temperature warning indicator does not appear.

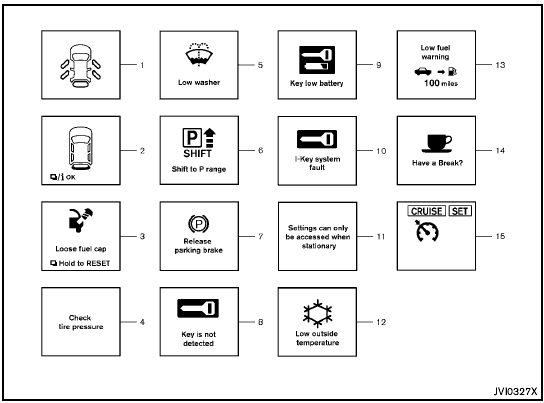

Indicators for operation

The design of the warnings and alerts may differ depending on the model.

1. Door open warning

1. Door open warning

This warning appears if any of the doors are open or not closed securely. The vehicle icon indicates which door is open on the display.

2. Lift gate open warning

This warning appears if the lift gate is open or not closed securely. When the warning turns off. switch is pushed, the lift gate open warning turns off.

3. Loose fuel cap warning

This warning appears when the fuel-filler cap is not tightened correctly after the vehicle has been refueled. (See “Fuel-filler cap” in the “3.

Pre-driving checks and adjustments” section.)

4. Check tire pressure warning (if so equipped)

This warning appears when the low tire pressure warning light in the meter illuminates and low tire pressure is detected. If this warning appears, stop the vehicle and adjust the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label. To turn off the check tire pressure warning, push the “Low tire pressure warning light” earlier in this section and “Tire Pressure Monitoring switch for about 1 second. (See “Low tire pressure warning light” earlier in this section and “Tire Pressure Monitoring System (TPMS)” in the “5. Starting and driving” section.)

5. Low washer fluid warning (if so equipped)

This light illuminates when the washer fluid is at a low level. Add washer fluid as necessary. (See “Window washer fluid” in the “8. Maintenance and do-it-yourself” section.) When the the low washer fluid warning turns off (if so equipped). switch is pushed, the low washer fluid warning turns off (if so equipped).

6. SHIFT “P” warning (if so equipped)

This warning appears when the ignition switch is turned to stop the engine with the selector lever in any position except the P (Park) position.

If this warning appears, move the selector lever to the P (Park) position or turn the ignition switch to the ON position.

An inside warning chime will also sound. (See “Intelligent Key system” in the “3. Pre-driving checks and adjustments” section.)

7. Parking brake release warning

This warning appears when the vehicle speed is above 4 MPH (7 km/h) and the parking brake is applied.

8. Intelligent Key detection warning (if so equipped)

This warning appears in either of the following conditions.

No key inside the vehicle:

The warning appears when the door is closed with the Intelligent Key left outside the vehicle and the ignition switch in the ACC or ON position. Make sure that the Intelligent Key is inside the vehicle.

Unregistered Intelligent Key:c

The warning appears when the ignition switch is turned from the LOCK position and the Intelligent Key cannot be recognized by the system.

You cannot start the engine with an unregistered key. Use the registered Intelligent Key.

See “Intelligent Key system” in the “3. Predriving checks and adjustments” section for more details.

9. Intelligent key battery discharge indicator (if so equipped)

This indicator appears when the Intelligent key battery is running out of power.

If this indicator appears, replace the battery with a new one. (See “Battery replacement” in the “8.

Maintenance and do-it-yourself” section.)

10. Intelligent Key system fault warning (if so equipped)

If the Intelligent Key system fault warning comes on, it may indicate a system

If the Intelligent Key system fault warning comes on, it may indicate a system malfunction. Contact a NISSAN dealer for repair.

For more information, see “Intelligent Key system” in the “3. Pre-driving checks and adjustments” section.

11. Setting menu operation warning

The warning appears when you try to operate the setting menu while driving. The setting menu can only be entered when the vehicle is stationary.

12. Low outside temperature warning

This warning appears if the outside temperature drops below 378F (38C) with the ignition switch in the ON position. The outside temperature display flashes at the same time. These warning features can be turned off. (See “Trip computer” later in this section.)

13. Low fuel warning

This warning appears when the fuel level in the tank is getting low. Refuel as soon as it is convenient, preferably before the fuel gauge reaches the empty (0) position.

There is a small reserve of fuel remaining in the tank when the fuel gauge reaches the empty (0) position.

14. Driver alert

This warning appears when the previously set time for a break is reached. You can set the time for up to 6 hours in the setting menu. (See “Trip computer” later in this section.)

15. Cruise control indicator

The cruise main switch indicator (CRUISE) is displayed when the cruise control main switch is pushed. When the main switch is pushed again, the CRUISE indicator disappears. When the CRUISE indicator is displayed, the cruise control system is operational.

The cruise control set indicator (SET) is displayed while the vehicle speed is controlled by the cruise control system. If the SET indicator blinks while the engine is running, it may indicate that the cruise control system is not functioning properly. Have the system checked by a NISSAN dealer.

For more details, see “Cruise control” in the “5.

Starting and driving” section.

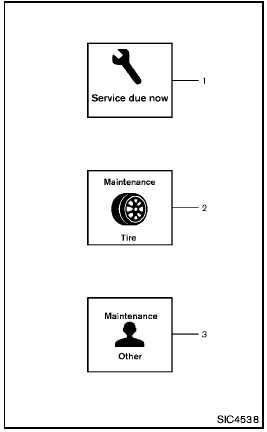

Indicators for maintenance

1. Service due indicator

1. Service due indicator

This indicator appears when the customer set distance comes for service due, for example, for engine oil and oil filter. You can set or reset the distance for service due. (See “Trip computer” later in this section.) For scheduled maintenance items and intervals, see your NISSAN Service and Maintenance Guide.

2. Tire replacement indicator

This indicator appears when the customer set distance comes for replacing tires. You can set or reset the distance for replacing tires. (See “Trip computer” later in this section.)

The tire replacement indicator is not a substitute for regular tire checks,

The tire replacement indicator is not a substitute for regular tire checks, including tire pressure checks. See “Changing wheels and tires” in the “8.

Maintenance and do-it-yourself” section.

Many factors including tire inflation, alignment, driving habits and road conditions affect tire wear and when tires should be replaced. Setting the tire replacement indicator for a certain driving distance does not mean your tires will last that long. Use the tire replacement indicator as a guide only and always perform regular tire checks.

Failure to perform regular tire checks, including tire pressure checks could result in tire failure. Serious vehicle damage could occur and may lead to a collision, which could result in serious personal injury or death.

3. “OTHER” indicator

This indicator appears when the customer set distance comes for checking or replacing maintenance items other than the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation.

You can set or reset the distance for checking or replacing the items. (See “Trip computer” later in this section.) For scheduled maintenance items and intervals, see your NISSAN Service and Maintenance Guide.

Trip computer

To operate the trip computer, use the A

To operate the trip computer, use the A When the ignition switch is in the ON position, modes of the trip computer can switch.

When the ignition switch is in the ON position, modes of the trip computer can be selected by pushing the A briefly. switch A briefly.

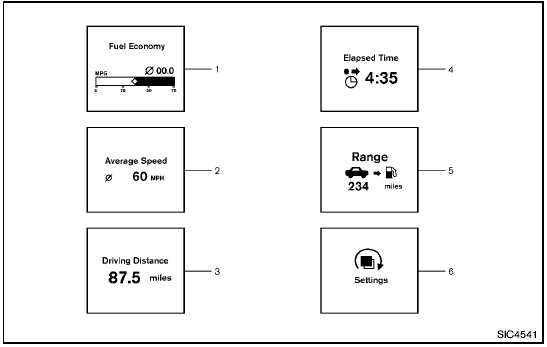

Each time the pushed, the display will change as follows: switch A is pushed, the display will change as follows:
Fuel Economy Driving distance Average speed Elapsed time Driving distance Range (distance to empty) (dte) Elapsed time Settings - When the Range (distance to empty) (dte) switch A is pushed and held Settings - When the for less than 3 seconds, the selected item can be reset except for “Range”, “Current switch A is pushed and held for less than 3 seconds, the selected item can be reset except for “Range”, “Current fuel consumption” and “Settings”.

- When the and held for more than 3 seconds, all the items on the display can be reset except switch A is pushed and held for more than 3 seconds, all the items on the display can be reset except for “Current fuel consumption”, “Settings”, “Range” and “TRIP A”.

Example*
Example*

*: The display unit can be converted or varies depending on the vehicle.

1. Fuel Economy (MPG, l/100 km)

The Fuel Economy mode shows the current and average fuel consumption.

Current fuel consumption:

The current fuel consumption mode shows the current fuel consumption by a moving bar graph.

Average fuel consumption:

The average fuel consumption mode shows the average fuel consumption by the value above the bar graph, the position of the diamond icon and the value of ˘ since the last reset. Resetting the average fuel consumption is done by pushing and holding the seconds. switch A for less than 3 seconds.

The display is updated every 30 seconds. At about the first 0.3 mile (500 m) after a reset, the display shows “----”.

2. Average Speed (MPH or km/h)

The Average Speed mode shows the average vehicle speed since the last reset. Resetting is done by pushing and holding the The display is updated every 30 seconds. For the first 30 seconds after a reset, switch B for less than 3 seconds.

The display is updated every 30 seconds. For the first 30 seconds after a reset, the display shows “----”.

3. Driving Distance (miles or km)

The Driving Distance mode shows the distance driven since the last reset. The driving distance can be reset by pushing and holding the 4. Elapsed Time switch A for less than 3 seconds.

4. Elapsed Time

The Elapsed Time mode shows the time since the last reset. The displayed time can be reset by pushing and holding the 5. Range (distance to empty) (dte — miles or km) switch A for less than 3 seconds.

5. Range (distance to empty) (dte — miles or km)

The distance to empty (dte) mode provides you with an estimation of the distance that can be driven before refueling. The dte is constantly being calculated based on the amount of fuel in the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds.

The dte mode includes a low range warning feature. If the fuel level is low, the warning is displayed on the screen.

When the fuel level drops even lower, the dte display will change to “----”.

- If the amount of fuel added is small, the display just before the ignition switch is turned to the “OFF” position may continue to be displayed.

- When driving uphill or rounding curves, the fuel in the tank shifts, which may momentarily change the display.

6. Settings

6. Settings

Setting cannot be made while driving.

The and set the item. switch A is used to select and set the item.

Turn the or adjust and push to set. A switch to select or adjust and push to set.

Clock:

Clock adjustment can be set on this menu.

- Set Clock
Adjust the time (hour and minute) of the clock.

- [On] or [Off]
Select this submenu to set the clock display On or Off.

- [24/12 Hr]
Select this submenu to set the 12h/24h time display mode.

To return to the top page of the setting mode, select “BACK”.

The time display may be different from the one on the audio display.

Units:

The units can be set for the following items on this menu.

- Temperature
- Distance/Fuel
To return to the top page of the setting mode, select “BACK”.

Maintenance:

The maintenance intervals of the following items can be set or reset for the reminders.

- SERVICE
Select this submenu to set or reset the distance for service due.

- TIRE
Select this submenu to set or reset the distance for replacing tires.

- OTHER
Select this submenu and set or reset the distance for items other than service or tires.

To return to the top page of the setting mode, select “BACK”.

Alarms:

Alarms menu can be set to notify the following items.

- Driver alert
Select this submenu to set the driver alert period.

- Outside temp
Select this submenu to turn ON or OFF the low outside temperature warning features.

For a description of the low outside temperature warning features when Outside Temp is set to ON, see “Outside air temperature” earlier in this section.

With Outside Temp set to OFF,
— The outside temperature display remains on steady at all outside temperatures and does not flash.

— The low outside temperature warning indicator does not appear.

To return to the top page of the setting mode, select “BACK”.

Language:

Select the submenu to set the desired language of the display.

Factory:

Select the submenu to reset the factory settings of the display.

NOTE:

When resetting Factory, all previous settings made are changed to default.

To return to the top page of the setting mode, select “BACK”.

Continuously Variable Transmission (CVT) position indicator

The Continuously Variable Transmission (CVT) position indicator indicates the selector lever position when the ignition switch is in the ON position.
