Camera unit maintenance

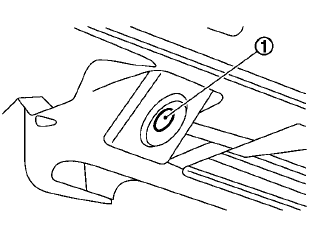

The rear camera unit 1 for the LDW/BSW systems is located above the rear licence plate.
To maintain the proper operation of the LDW/ BSW systems and help keep the system functioning, be sure to observe the following:
• Always keep the camera unit clean. Be
careful not to damage the nozzle of automatic
washer and blower.
• Do not attach “license plate accessories”
that reflect light.
• Do not strike or damage the areas around
the camera unit.
