Storages

Cup holders

- Avoid abrupt starting and braking when the cup holder is being used to prevent

- Avoid abrupt starting and braking when the cup holder is being used to prevent spilling the drink. If the liquid is hot, it can scald you or your passenger.

- Use only soft cups in the cup holder.

Hard objects can injure you in an accident.

Front
Front

The flap A will be folded down when inserting a large container.

To remove the inner tray for cleaning, pull it up as illustrated 1 .

Rear
Rear

To open the cup holder, pull the lid.

Sunglasses holder

Sunglasses holder
Sunglasses holder

Keep the sunglasses holder closed while driving to prevent an accident.

Keep the sunglasses holder closed while driving to prevent an accident.

To open the sunglasses holder, push 1 .

- Do not use for anything other than glasses.

- Do not use for anything other than glasses.

- Do not leave glasses in the sunglasses holder while parking in direct sunlight. The heat may damage the glasses.

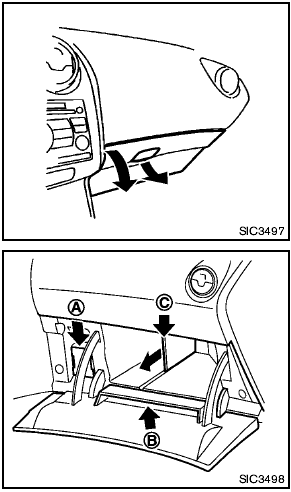

Glove box

Glove box
Glove box

Keep glove box lid closed while driving to help prevent injury in an accident

Keep glove box lid closed while driving to help prevent injury in an accident or a sudden stop.

To open the glove box, pull the handle.

To close, push the lid in until the lock latches.

The glove box light illuminates when the headlight switch is turned on.

A Card holder
B Back side pocket of lid
C Removable partition (if so equipped)
To remove the partition, pull it out.

Console box

Console box
Console box

To open the console boxes, push up the knob A and pull up the lid.

To close, push the lid down until latched.

To remove the inner box (if so equipped) for cleaning or storing a large object, pull it up as illustrated B .

The inside of the console box lid is designed to be used as a card holder C and pen holders D .

Luggage floor box (if so equipped)

Type A

Type B
Type B

Type A: To open the luggage floor box, push A . To close, push the lid until the lock latches.

The net partitions can be folded to make a larger storage space.

To avoid damage, do not load more than 22 lbs (10 kg) of cargo into the luggage

To avoid damage, do not load more than 22 lbs (10 kg) of cargo into the luggage floor box.

Type B: To open the luggage floor box, pull the handle B on the lid. To close, push the lid until the lock latches.

The luggage floor box needs to be removed when you need a spare tire. (See “Flat tire” in the “6. In case of emergency” section.)

Luggage side box

Luggage side box
Luggage side box

To open the luggage side box, pull up the strap.

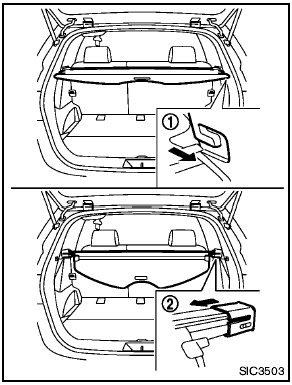

Cargo cover (if so equipped)

Cargo cover (if so equipped)
Cargo cover (if so equipped)

The cargo cover keeps the contents in the cargo area hidden from the outside.

To use the cargo cover, pull it out and hang both sides on the hooks 1 .

To stow the cargo cover, remove it from the hooks and hold until it is retracted.

To remove the cargo cover, stow the cover and pull the holder to the opposite side 2 .

- Never put anything on the cargo cover, no matter how small. Any object on

- Never put anything on the cargo cover, no matter how small. Any object on it could cause an injury in an accident or sudden stop.

- Close the cargo cover when folding the rear seat.

- Do not leave the cargo cover in the vehicle with it disengaged from the holder.

- Properly secure all cargo with ropes or straps to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or collision, unsecured cargo could cause personal injury.

- If the cargo cover contacts the top tether strap when it is attached to the top tether anchor, remove the cargo cover from the vehicle or secure it on the cargo floor below its attachment location. If the cargo cover is not removed, it may damage the top tether strap during a collision. Your child could be seriously injured or killed in a collision if the child restraint top tether strap is damaged.

- Do not allow cargo to contact the top tether strap when it is attached to the top tether anchor. Properly secure the cargo so it does not contact the top tether strap. Cargo that is not properly secured or that contacts the top tether strap may damage the top tether strap during a collision. Your child could be seriously injured or killed in a collision if the child restraint top tether strap is damaged.

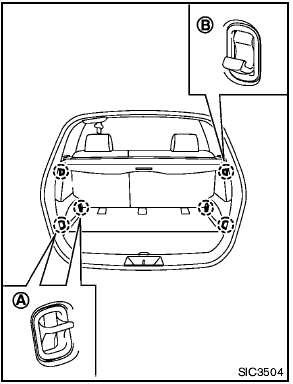

Luggage hooks (if so equipped)

Luggage hooks (if so equipped)
Luggage hooks (if so equipped)

- Always make sure that the luggage is properly secured. Use the suitable

- Always make sure that the luggage is properly secured. Use the suitable ropes and hooks.

- Unsecured luggage can become dangerous in an accident or sudden stop.

Do not apply a total load of more than 22 lb (10 kg) A or 7 lb (3 kg)

Do not apply a total load of more than 22 lb (10 kg) A or 7 lb (3 kg) B to a single hook.

Coat hooks (if so equipped)

Coat hooks (if so equipped)
Coat hooks (if so equipped)

The coat hooks are equipped above the rear window.

Do not apply a total load of more than 2 lb (1 kg) to a single hook.

Do not apply a total load of more than 2 lb (1 kg) to a single hook.

Utility hook

Utility hook
Utility hook

To use the utility hook on the seatback, pull it.

- Do not apply a total load of more than 6 lb (3 kg) to the hook.

- Do not apply a total load of more than 6 lb (3 kg) to the hook.

- Do not use the utility hook to pull the seatback to the upright and locked position. Doing so will cause the utility hook to break.

Roof rack (if so equipped)

Roof rack (if so equipped)
Roof rack (if so equipped)

Secure the crossbars to the roof rail before loading. The crossbars are available from a NISSAN dealer.

Always distribute the luggage evenly on the roof rack. Do not load more than 99 lb (45 kg). Be careful that your vehicle does not exceed the Gross Vehicle Weight Rating (GVWR) or its Gross Axle Weight Rating (GAWR front and rear). The GVWR and GAWR are located on the F.M.V.S.S. or C.V.M.S.S. certification label (located on the driver’s door pillar). For more information regarding GVWR and GAWR, see “Vehicle loading information” in the “9. Technical and consumer information” section.

- Drive extra carefully when the vehicle is loaded at or near the cargo carrying

- Drive extra carefully when the vehicle is loaded at or near the cargo carrying capacity, especially if the significant portion of that load is carried on the roof rack.

- Heavy loading of the roof rack has the potential to affect the vehicle stability and handling during sudden or unusual handling maneuvers.

- Roof rack load should be evenly distributed.

- Do not exceed maximum roof rack load weight capacity.

- Properly secure all cargo with ropes or straps to help prevent it from sliding or shifting. In a sudden stop or collision, unsecured cargo could cause personal injury.

Use care when placing or removing items from the roof rack. If you cannot

Use care when placing or removing items from the roof rack. If you cannot comfortably lift the items onto the roof rack from the ground, use a ladder or stool.
