Intelligent Key system (if so equipped)

- Radio waves could adversely affect electric medical equipment. Those who

- Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should contact the electric medical equipment manufacturer for the possible influences before use.

- The Intelligent Key transmits radio waves when the buttons are pushed. The FAA advises that the radio waves may affect aircraft navigation and communication systems.

Do not operate the Intelligent Key while on an airplane.

Make sure the buttons are not operated unintentionally when the unit is stored during a flight.

The Intelligent Key system can operate all the door locks using the remote controller function or pushing the request switch on the vehicle without taking the key out from a pocket or purse. The operating environment and/or conditions may affect the Intelligent Key system operation.

Be sure to read the following before using the Intelligent Key system.

- Be sure to carry the Intelligent Key with you when operating the vehicle.

- Be sure to carry the Intelligent Key with you when operating the vehicle.

- Never leave the Intelligent Key in the vehicle when you leave the vehicle.

The Intelligent Key is always communicating with the vehicle as it receives radio waves. The Intelligent Key system transmits weak radio waves. Environmental conditions may interfere with the operation of the Intelligent Key system under the following operating conditions.

- When operating near a location where strong radio waves are transmitted, such as a TV tower, power station and broadcasting station.

- When in possession of wireless equipment, such as a cellular telephone, transceiver, and CB radio.

- When the Intelligent Key is in contact with or covered by metallic materials.

- When any type of radio wave remote control is used nearby.

- When the Intelligent Key is placed near an electric appliance such as a personal computer.

- When the vehicle is parked near a parking meter.

In such cases, correct the operating conditions before using the Intelligent Key function or use the mechanical key.

Although the life of the battery varies depending on the operating conditions, the battery’s life is approximately 2 years. If the battery is discharged, replace it with a new one.

Since the Intelligent Key is continuously receiving radio waves, if the key is left near equipment which transmits strong radio waves, such as signals from a TV and personal computer, the battery life may become shorter.

For information regarding replacement of a battery, see “Battery replacement” in the “8.

Maintenance and do-it-yourself” section.

As many as 4 Intelligent Keys can be registered and used with one vehicle. For information about the purchase and use of additional Intelligent Keys, contact a NISSAN dealer.

- Do not allow the Intelligent Key, which contains electrical components,

- Do not allow the Intelligent Key, which contains electrical components, to come into contact with water or salt water. This could affect the system function.

- Do not drop the Intelligent Key.

- Do not strike the Intelligent Key sharply against another object.

- Do not change or modify the Intelligent Key.

- Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immediately wipe until it is completely dry.

- If the outside temperature is below 148F (−108C) degrees, the battery of the Intelligent Key may not function properly.

- Do not place the Intelligent Key for an extended period in an area where temperatures exceed 1408F (608C).

- Do not attach the Intelligent Key with a key holder that contains a magnet.

- Do not place the Intelligent Key near equipment that produces a magnetic field, such as a TV, audio equipment, personal computers or cellular phone.

If an Intelligent Key is lost or stolen, NISSAN recommends erasing the ID code of that Intelligent Key from the vehicle. This may prevent the unauthorized use of the Intelligent Key to operate the vehicle. For information regarding the erasing procedure, contact a NISSAN dealer.

The Intelligent Key function can be disabled. For information about disabling the Intelligent Key function, contact a NISSAN dealer.

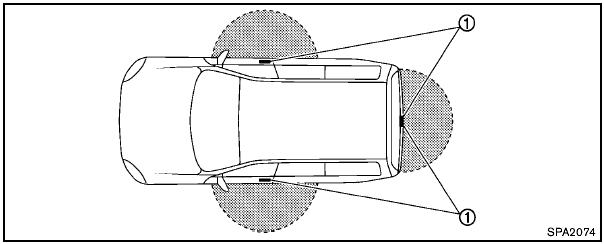

Intelligent Key operating range

Intelligent Key operating range
Intelligent Key operating range

The Intelligent Key functions can only be used when the Intelligent Key is within the specified operating range from the request switch 1 .

When the Intelligent Key battery is discharged or strong radio waves are present near the operating location, the Intelligent Key system’s operating range becomes narrower, and the Intelligent Key may not function properly.

The operating range is within 31.50 in (80 cm) from each request switch 1 .

If the Intelligent Key is too close to the door glass, handle or rear bumper, the request switches may not function.

When the Intelligent Key is within the operating range, it is possible for anyone who does not carry the Intelligent Key to push the request switch to lock/unlock the doors including the lift gate.

Door locks/unlocks precaution

- Do not push the door handle request switch with the Intelligent Key held in

- Do not push the door handle request switch with the Intelligent Key held in your hand as illustrated. The close distance to the door handle will cause the Intelligent Key system to have difficulty recognizing that the Intelligent Key is outside the vehicle.

- After locking with the door handle request switch, verify the doors are securely locked by testing them.

- To prevent the Intelligent Key from being left inside the vehicle, make sure you carry the key with you and then lock the doors.

- Do not pull the door handle before pushing the door handle request switch. The door will be unlocked but will not open. Release the door handle once and pull it again to open the door.

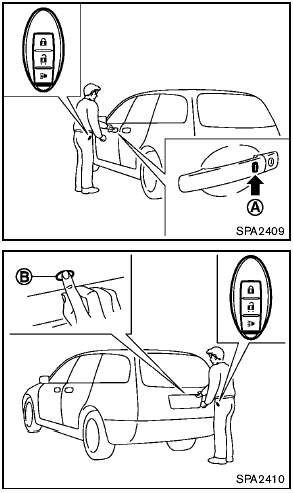

Intelligent Key operation

You can lock or unlock the doors without taking the key out from your pocket

You can lock or unlock the doors without taking the key out from your pocket or bag.

When you carry the Intelligent Key with you, you can lock or unlock all doors by pushing the door handle request switch (driver’s or front passenger’s) A or lift gate request switch B within the range of operation.

When you lock or unlock the doors, the hazard indicator will flash and the horn (or the outside chime) will sound as a confirmation. For details, see “Setting hazard indicator and horn mode” later in this section.

Locking doors

1. Turn the ignition switch to the LOCK position.1
2. Carry the Intelligent Key with you.
3. Close all the doors.2
4. Push the door handle request switch (driver’s or front passenger’s) A or the lift gate request switch B while carrying the Intelligent Key with you.3
5. All the doors and the lift gate will lock.
6. The hazard indicator flashes twice and the outside chime sounds twice.

1: Doors will lock with the request switch while the ignition switch is in the ACC or ON position.

2: Doors will not lock with the request switch while any door is open.

3: Doors will not lock with the request switch when the Intelligent Key is left inside the vehicle.

However, when an Intelligent Key is inside the vehicle, doors can be locked with another registered Intelligent Key.

Unlocking doors

1. Push the door handle request switch A or the lift gate request switch B while carrying the Intelligent Key with you.

2. The hazard indicator flashes once and outside chime sounds once. The corresponding door or the lift gate will unlock.

3. Push the request switch again within 5 seconds.

4. The hazard indicator flashes once and outside chime sounds once again. All the doors and the lift gate will unlock.

All doors will be locked automatically unless one of the following operations is performed within 1 minute after pushing the request switch while the doors are locked.

- Opening any doors.

- Pushing the ignition switch.

- Inserting the mechanical key into the ignition switch.

During this 1-minute time period, if the UNLOCK all doors will be locked automatically after another 1 minute. button on the Intelligent Key is pushed, all doors will be locked automatically after another 1 minute.

Warning signals

The Intelligent Key system is equipped with a function that is designed to minimize improper operations and to help prevent the vehicle from being stolen. The warning buzzer sounds and the warning display appears on the vehicle information display when improper operations are detected.

When the buzzer sounds and the warning display appears, be sure to check both

When the buzzer sounds and the warning display appears, be sure to check both the vehicle and the Intelligent Key.

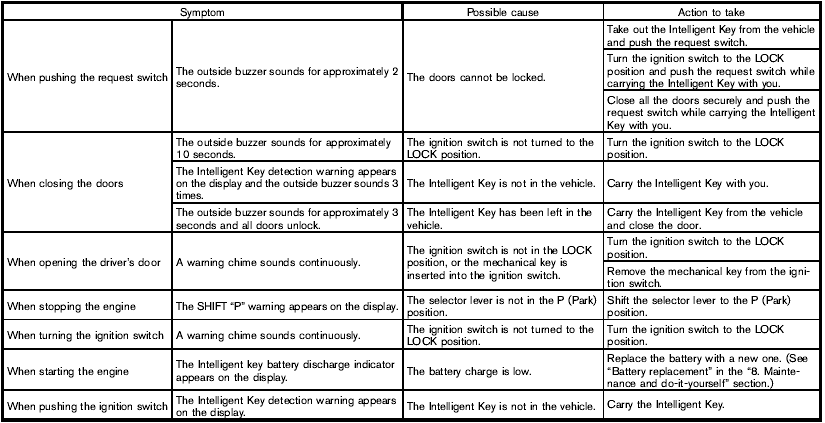

Troubleshooting guide

How to use remote keyless entry function

How to use remote keyless entry function

- Radio waves could adversely affect electric medical equipment. Those who

- Radio waves could adversely affect electric medical equipment. Those who use a pacemaker should contact the electric medical equipment manufacturer for the possible influences before use.

- The Intelligent Key transmits radio waves when the buttons are pushed. The FAA advises that the radio waves may affect aircraft navigation and communication systems.

Do not operate the Intelligent Key while on an airplane.

Make sure the buttons are not operated unintentionally when the unit is stored during a flight.

- Do not allow the Intelligent Key, which contains electrical components,

- Do not allow the Intelligent Key, which contains electrical components, to come into contact with water or salt water. This could affect the system function.

- Do not drop the Intelligent Key.

- Do not strike the Intelligent Key sharply against another object.

- Do not change or modify the Intelligent Key.

- Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immediately wipe until it is completely dry.

- Do not place the Intelligent Key for an extended period in an area where temperatures exceed 1408F (608C).

- Do not attach the Intelligent Key with a key holder that contains a magnet.

- Do not place the Intelligent Key near equipment that produces a magnetic field, such as a TV, audio equipment, personal computers or cellular phone.

The remote keyless entry function can operate all door locks using the remote keyless entry function of the Intelligent Key. The remote keyless entry function can operate at a distance of approximately 33 ft (10 m) from the vehicle.

(The operating distance depends upon the conditions around the vehicle.) The remote keyless entry function will not operate:
- When the Intelligent Key is not within the operational range.

- When the doors are open or not closed securely.

- When the Intelligent Key battery is discharged.

The remote keyless entry function can also operate the vehicle alarm.

1 LOCK button

1 LOCK button 2 UNLOCK button
2 UNLOCK button 3 PANIC button
3 PANIC button When you lock or unlock the doors, the hazard indicator will flash and the horn

When you lock or unlock the doors, the hazard indicator will flash and the horn (or the outside chime) will sound as a confirmation. For details, see “Setting hazard indicator and horn mode” later in this section.

Locking doors

1. Turn the ignition switch to the LOCK position.1

2. Carry the Intelligent Key with you.

3. Close all the doors.2

4. Push the LOCK on the Intelligent Key. button 1 on the Intelligent Key.

5. All the doors and the lift gate will lock.

6. The hazard indicator flashes twice and the horn chirps once.

1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON position.

2: Doors will not lock with the Intelligent Key while any door is open.

Operate the door handles to confirm that the doors have been securely locked.

Unlocking doors

1. Push the UNLOCK on the Intelligent Key. button 2 on the Intelligent Key.

2. The hazard indicator flashes once. The driver’s door will unlock.

3. Push the UNLOCK within 5 seconds. button again within 5 seconds.

4. The hazard indicator flashes once. All the doors and the lift gate will unlock.

All doors will be locked automatically unless one of the following operations is performed within 1 minute after pushing the UNLOCK - Opening any doors. button while the doors are locked.

- Opening any doors.

- Pushing the ignition switch.

- Inserting the mechanical key into the ignition switch.

During this 1-minute time period, if the UNLOCK locked automatically after another 1 minute. button is pushed, all doors will be locked automatically after another 1 minute.

Using panic alarm

If you are near your vehicle and feel threatened, you may activate the alarm to call attention as follows:
1. Push the PANIC the Intelligent Key for more than 1 second. button 3 on the Intelligent Key for more than 1 second.

2. The theft warning alarm and headlights will stay on for 25 seconds.

3. The panic alarm stops when:
- It has run for 25 seconds, or
- Any of the buttons on the Intelligent Key is pushed. (Note: PANIC button must be pushed for more than 1 second.)

Setting hazard indicator and horn mode

This vehicle is set in hazard indicator and horn mode when you first receive the vehicle.

In hazard indicator and horn mode, when the LOCK indicator flashes twice and the horn chirps once. button 1 is pushed, the hazard indicator flashes twice and the horn chirps once.

When the UNLOCK is pushed, the hazard indicator flashes once. button 2 is pushed, the hazard indicator flashes once.

If horns are not necessary, the system can be switched to the hazard indicator mode.

In hazard indicator mode, when the LOCK flashes twice. When the UNLOCK  button button is pushed, the hazard indicator flashes twice. When the UNLOCK is pushed, neither the hazard indicator nor the horn operates. button is pushed, neither the hazard indicator nor the horn operates.

Hazard indicator and horn mode:

Hazard indicator mode:

Hazard indicator mode:

Switching procedure:

Switching procedure:

To switch the hazard indicator and horn operation, push the LOCK 1 and UNLOCK 2 buttons on the Intelligent Key simultaneously for more than 2 seconds.
2 buttons on the Intelligent Key simultaneously for more than 2 seconds.

- When the hazard indicator mode is set, the hazard indicator flashes 3 times.

- When the hazard indicator and horn mode is set, the hazard indicator flashes once and the horn chirps once.
