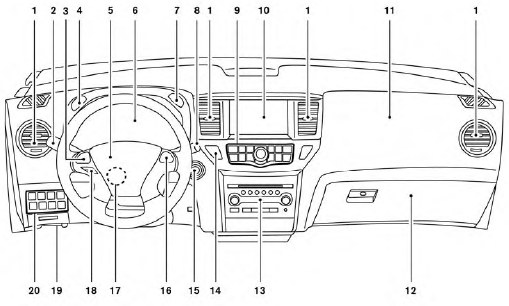

Instrument panel

1. Vent

1. Vent
2. Headlight/fog light (if so equipped)/turn signal switch
3. Control panel and Vehicle Information Display switches
4. Instrument brightness control
5. Driver supplemental air bag/Horn
6. Meters, gauges, warning/indicator lights and Vehicle Information Display
7. Twin trip odometer reset switch
8. Windshield wiper/washer switch and rear window wiper/washer switch
9. Center display/Navigation system* switches (if so equipped) / Audio system controls
10. Center display/Navigation system* (if so equipped)
11. Front passenger supplemental air bag
12. Glove box
13. Audio system controls Automatic heater and air conditioning controls
14. Hazard light switch
15. Ignition switch
16. Cruise control main/set switches
17. Tilt steering wheel control
18. Bluetooth® Hands-Free Phone System
19. Hood release
20. Vehicle dynamic control (VDC) OFF switch
Tow mode switch
Liftgate release switch (if so equipped)
Heated steering wheel switch (if so equipped)
Power inverter switch (if so equipped)
Power liftgate main switch (if so equipped)
*: Refer to the separate Navigation System Owner’s Manual (if so equipped).

See the page number indicated in parentheses for operating details.
