How to use the vehicle information display

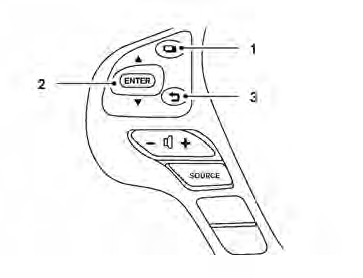

The vehicle information display can be changed
using the buttons
and ENTER located
on
the steering wheel.
1.
— select/enter the Vehicle
information
menu items or to change from one display
screen to the next (i.e. trip, TPMS, Fuel
economy)
2.
— navigate through the items in
vehicle
information
ENTER — change or select an item in the
vehicle information display
3.
— go back to the previous menu
The ENTER and buttons also
control audio
and control panel functions. For additional information
see, “Steering wheel switch for audio
control” in “Monitor, climate, audio, phone and
voice recognition systems” section.
