Passenger compartment

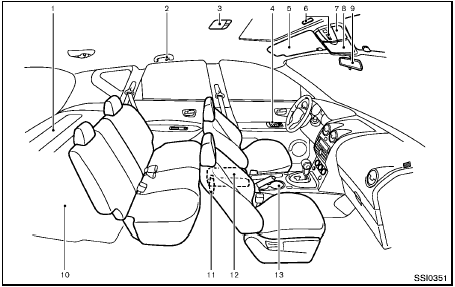

Passenger compartment
1. Cargo cover*
2. Coat hooks
3. Ceiling light
4. Door armrest
— Power window switch
— Power door lock switch
5. Sun visors
6. Moonroof*
7. Front map lights
8. Sunglasses holder
9. Inside rearview mirror
— Anti-glare adjustment*
— HomeLink® universal transceiver*
— Compass*
10. Cargo area
— Storages
— Luggage hooks
— Cargo light
— Spare tire
11. Rear cup holders
12. Console box
— Power outlet*
— iPod® or USB outlet connector*
13. Front cup holders
*: if so equipped
