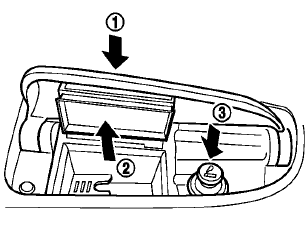

Cigarette lighter and ashtray (if so equipped)
To open the ashtray lid, push the lid down and release it1 .
To empty the ashtray, pull out2 .
The cigarette lighter operates when the ignition switch is in the ON position.
Push the lighter in all the way3 , then release it. When the lighter is heated, it will spring out.
Return the lighter to its original position after use.
CAUTION
• The cigarette
lighter socket is a
power source for the cigarette lighter
element only. The use of the
cigarette lighter socket as a power
source for any other accessory is
not recommended.
• Do not use any
other power outlet
for an accessory lighter.
