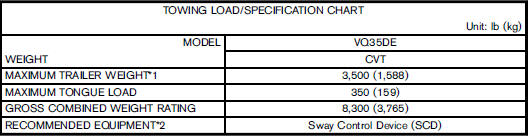

Towing load/specification
1: All towing above 1,000 lb (454 kg) requires the use of trailer brakes.
NISSAN recommends the use of a
tandem axle trailer whenever towing above 3,000 lb (1,361 kg).
2: A sway control device is recommended for all towing above 2,000 lb (907 kg).
Sway control devices are not
offered by NISSAN. See a professional trailer/hitch outlet for a properly
designed sway control device for
your trailer.
