Drive belt

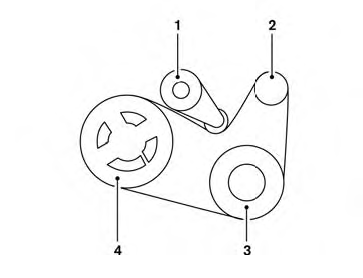

1. Drive belt automatic tensioner

1. Drive belt automatic tensioner
2. Generator
3. A/C compressor
4 Crankshaft pulley

WARNING

Be sure the ignition key is in the OFF or LOCK position before servicing drive belt.

The engine could rotate unexpectedly.

1. Visually inspect the belt for signs of unusual wear, cuts, fraying or looseness. If the belt is in poor condition or is loose, have it replaced or adjusted by a NISSAN dealer.
2. Have the belt checked regularly for condition and tension in accordance with the maintenance schedule found in your “NISSAN Service and Maintenance Guide”.
