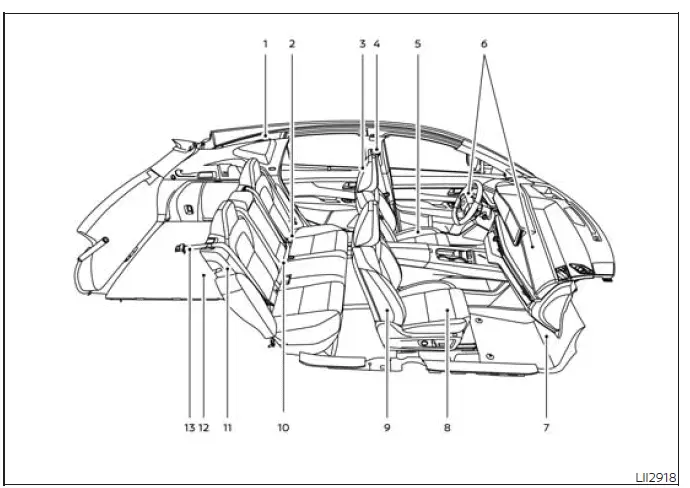

Air bags, seat belts and child restraints

1. Roof-mounted curtain side-impact and rollover supplemental air bags, positioned along the upper side areas of the cabin to help provide additional coverage for outboard occupants when the system is activated.
2. LATCH (Lower Anchors and Tethers for CHildren) system, designed to help secure compatible child restraint seats using the designated lower anchor points and tether locations.
3. Head restraints/headrests for the front and rear seating positions, used to support proper seating posture and help reduce excessive head movement in certain impacts.
4. Front seat belt with pretensioner(s) and shoulder height adjuster, allowing the belt to sit more appropriately across the shoulder while the pretensioner system is integrated into the restraint design.
5. Front seats, including the main seating structures used by the driver and front passenger in the Nissan Murano.
6. Supplemental front-impact air bags, installed for the driver and front passenger as part of the supplemental restraint system.
7. Driver and front passenger supplemental knee air bag, with the passenger's side shown in the illustration and the driver's side arranged in a similar position.
8. Occupant classification sensor (weight sensor), used at the front passenger seating position to support air bag system operation based on detected occupant conditions.
9. Front seat-mounted side-impact supplemental air bag, integrated into the front seat area to provide additional side-impact protection when deployed.
10. Folding rear bench seat, designed to provide rear passenger seating and flexible cargo access when the seatback is folded.
11. Rear outboard seat-mounted side-impact supplemental air bag, located at the rear outboard seating positions for additional side-impact coverage.
12. Rear outboard seat top tether strap anchor, located on the bottom of the seatback and used when securing an appropriate child restraint.
13. Seat belt with pretensioner(s) for the rear outboard seats, with the passenger's side shown and the driver's side arranged in a similar way.

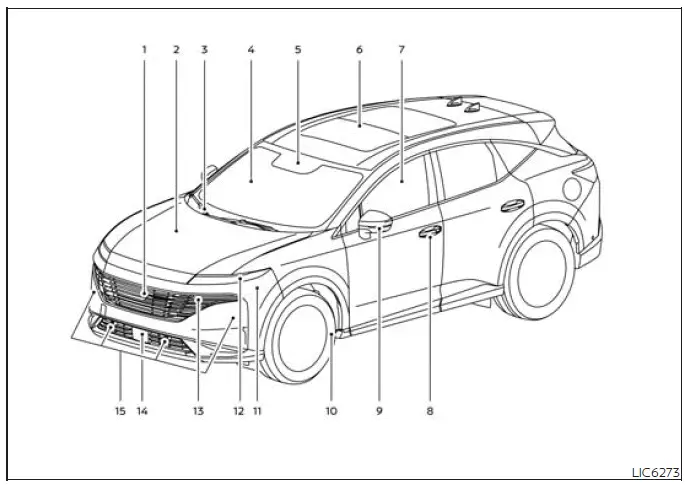

Exterior front

1. Front view camera, if so equipped, positioned at the front of the vehicle to support camera-based viewing features.
2. Engine hood, providing access to the engine compartment for inspection, service, and routine maintenance checks.
3. Wiper and washer switch, used by the driver to operate the windshield wiping and washing functions.
4. Windshield, the main front glass area that must remain clean and unobstructed for visibility and camera-related systems.
5. Multi-sensing front camera, mounted near the upper windshield area and used by applicable driver assistance functions.
6. Power moonroof, if so equipped, integrated into the roof area for additional light and ventilation.
7. Power windows, operated from the door switch controls to raise or lower the side windows.
8. Door locks
   NISSAN Intelligent Key system
   Keys
9. Mirrors
   Side view camera, if so equipped, located in the mirror area to support side-view monitoring features.
10. Tire pressure
    Emergency tire puncture repair kit, if so equipped
    Flat tire information, if so equipped
    Tire chains, including the related guidance for tire condition, temporary repair, and traction equipment.
11. Radar sensor, if so equipped, located at the front area of the Nissan Murano for applicable driver assistance systems.
12. Replacing bulbs
    Headlight switch
    LED Daytime Running Lights (DRL) system, covering the exterior lighting controls and service-related bulb information where applicable.
13. Turn signal switch
    Front Decorative Light
14. Front radar sensor, positioned at the front of the vehicle and used by systems that rely on forward object detection.
15. Front sonar sensors
    ProPILOT Assist Systems, including the front sensor locations that support parking assistance and related driver support features.

Exterior rear

1. Antenna arrangement for ProPILOT Assist models. For ProPILOT Assist 2.1 models, there are two antennas on the roof.
   For ProPILOT Assist 1.1 models, there is one antenna.
2. Rear wiper and washer switch, used to control cleaning of the rear window for improved rearward visibility.
3. Rearview camera, positioned to assist with viewing the area behind the vehicle when the system is active.
4. Liftgate release, used to open the rear cargo access area of the Nissan Murano.
5. Rear sonar sensors, located in the rear bumper area to support parking and proximity detection functions.
6. Replacing bulbs, covering rear exterior lighting service points where applicable.
7. Radar Sensors, positioned at the rear area for systems that require rear-side or rearward object detection.
8. Fuel-filler door
   Fuel recommendation, including the location for refueling access and the related fuel guidance.
9. Child safety rear door lock, used to help prevent rear doors from being opened from inside the vehicle when the lock is engaged.
