Specifications

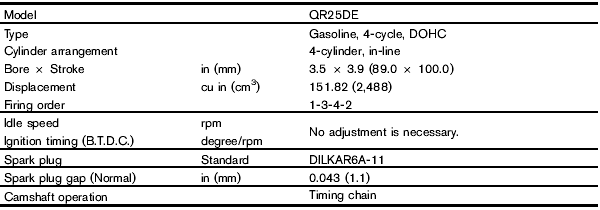

Engine

This spark ignition system complies with the Canadian standard ICES-002.

This spark ignition system complies with the Canadian standard ICES-002.

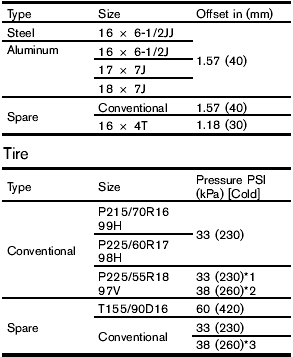

Wheels and tires

Road wheel

1: 2WD models 2: AWD models 3: AWD models (P225/55R18 97V)

1: 2WD models 2: AWD models 3: AWD models (P225/55R18 97V)

Dimensions and weights

1: Without front license plate bracket 2: With front license plate

1: Without front license plate bracket 2: With front license plate bracket 3: With roof rail
