Moving Object Detection (MOD) function

The Moving Object Detection (MOD) system can inform the driver of moving objects when driving out of garages, maneuvering into parking lots and in other such instances.

The MOD system detects moving objects by using image processing technology on the image shown in the display. The RearView camera is equipped with the automatic washer function using window washer fluid.

When the shift lever is in the R (Reverse) position and the vehicle speed is approximately 5 MPH (8 km/h) or less, the MOD system detects moving objects in the RearView Monitor.

The MOD system will not operate if the lift gate/ trunk is open or the washer fluid is at a low level.

WARNING

The MOD system is not a substitute for proper vehicle operation and does not prevent contact with the objects surrounding the vehicle.

When maneuvering, always use the outside mirror and RearView mirror and turn and look to check the surroundings to make sure it is safe to maneuver.
The MOD system is not designed to detect surrounding stationary objects.

If the MOD system detects moving objects behind the vehicle, a yellow frame will be displayed on the camera image and a chime sounds.

When the MOD system detects a moving object behind the vehicle, the yellow frame will be displayed on the view where the objects are detected and a chime will sound once. While the MOD system continues to detect moving objects, the yellow frame continues to be displayed.

When dirt is detected on the camera during driving, a camera washer operates automatically.

The washer will stop operation after a period of time.

WARNING

Do not use the MOD system when towing a trailer. The system may not function properly.
Excessive noise (for example, audio system volume or open vehicle window) will interfere with the chime sound, and it may not be heard.
The MOD system performance will be limited according to environmental conditions and surrounding objects such as:

— When there is low contrast between background and the moving objects
— When there is blinking source of light.
— When strong light such as another vehicle’s headlight or sunlight is present.
— When there is dirt, water drops or snow on the camera lens.
— When the position of the moving objects in the display is not changed.

The MOD system might detect something like flowing water droplets on the camera lens, white smoke from the muffler, moving shadows, etc.
The MOD system may not function properly depending on the speed, direction, distance or shape of the moving objects.
If your vehicle sustains damage to the parts where the camera is installed, leaving it misaligned or bent, the sensing zone may be altered and the MOD system may not detect objects properly.

Turning the MOD system on or off

Turning the MOD system on or off

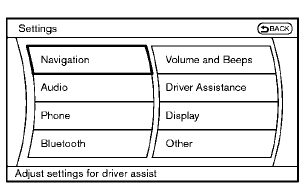

1. Push the SETTING button, select the “Driver Assistance” key and push the ENTER button.

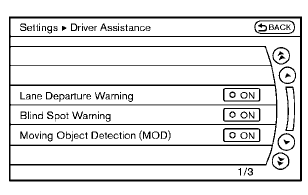

2. Then select the “Moving Object Detection

2. Then select the “Moving Object Detection (MOD)” key and push the ENTER button.

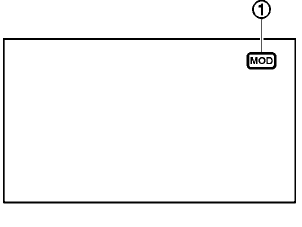

When the MOD system is turned on, the MOD

When the MOD system is turned on, the MOD icon1 is displayed.

MOD malfunction

When the yellow MOD icon is displayed in the view, the system is not functioning properly. This will not hinder normal driving operation but the system should be inspected by a NISSAN dealer.

Camera maintenance

If dirt, rain or snow accumulates on the camera, the MOD system may not operate properly.

Clean the camera.

The camera washer operates automatically when dirt is detected on the camera during driving. The washer then stops operation after a period of time.
