Adjustable headrest

WARNING

The adjustable headrests supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjust the headrests properly, as specified in this section. Check the adjustment after someone else uses the seat. Do not attach anything to the adjustable headrest stalks or remove the adjustable headrests. Do not use the seat if the adjustable headrests have been removed. If the headrest was removed, reinstall and properly adjust the headrest before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the adjustable headrests. This may increase the risk of serious injury or death in a collision.

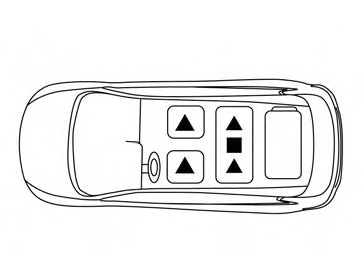

The illustration shows the seating positions

The illustration shows the seating positions equipped with adjustable headrests. All of the headrests are adjustable.

Indicates the seating position is equipped with an adjustable headrest.

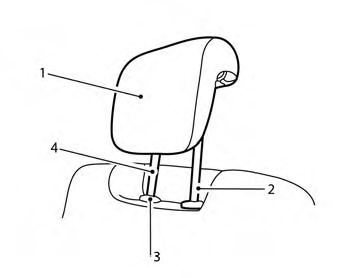

Components

Components

1. Adjustable headrest
2. Adjustment notches
3. Lock knob
4. Stalks

Adjustment

Adjustment

Adjust the headrest so the center is level with the center of the seat occupant’s ears.

To raise the headrest, pull it up.

To raise the headrest, pull it up.

To lower, push and hold the lock knob and push

To lower, push and hold the lock knob and push the headrest down.

Removal

Removal

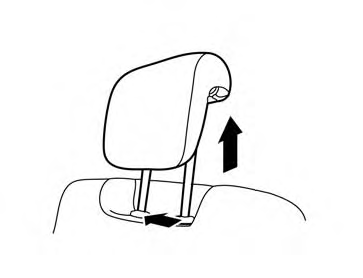

Use the following procedure to remove the adjustable headrests.

1. Pull the headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the headrest from the seat.
4. Store the headrest properly so it is not loose in the vehicle.
5. Reinstall and properly adjust the headrest before an occupant uses the seating position.

Install

Install

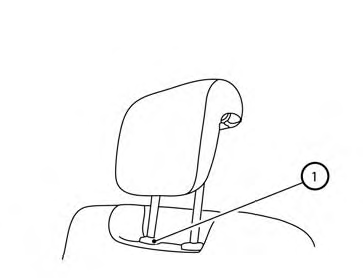

1. Align the headrest stalks with the holes in the seat. Make sure the headrest is facing the correct direction. The stalk with the adjustment notches must be installed in the hole with the lock knob 1 .
2. Push and hold the lock knob and push the headrest down.

3. Properly adjust the headrest before an occupant uses the seating position.
