Air conditioner specification label

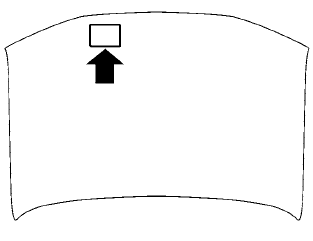

The air conditioner specification label is affixed to the underside of the hood as shown.
