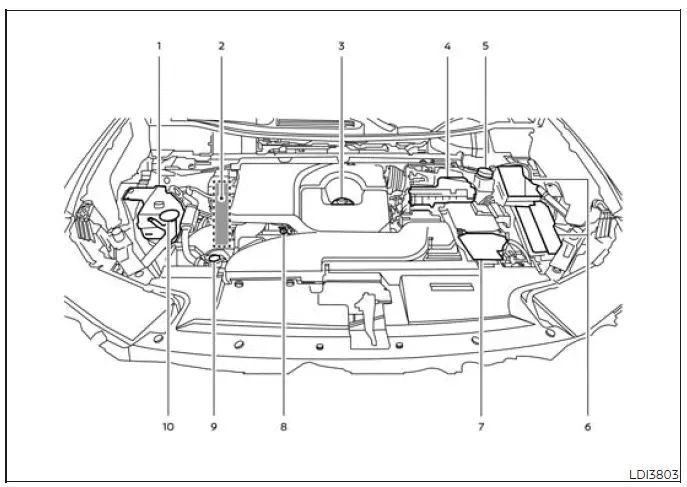

2.0L 4 cylinder (KR20DDET engine model)

1. Engine coolant reservoir, used as the visible check point for the engine cooling system level during routine inspection.
2. Drive belt location, where the belt routing area can be visually checked for general condition and proper placement.
3. Engine oil filler cap, the access point used when engine oil is added during maintenance.
4. Air cleaner, which houses the intake air filter element and helps keep dust and debris from entering the engine intake system.
5. Brake fluid reservoir, the marked container used to check brake fluid level as part of regular under-hood inspection.
6. Fuse/Fusible link box, containing electrical protection components for selected vehicle circuits.
7. Battery, located in the engine compartment area and used to supply electrical power for starting and vehicle electrical systems.
8. Engine oil dipstick, used to check the engine oil level according to the correct inspection procedure.
9. Radiator cap, located on the cooling system and handled only with proper care because pressure and heat may be present when the engine is hot.
10. Windshield-washer fluid reservoir, the fill point for washer fluid used by the windshield cleaning system.

NOTE:

The Nissan Murano shown in this section may not be equipped with an engine cover. The exact appearance of the engine compartment can vary by equipment, but the listed service check locations remain the key reference points for routine visual inspection.
